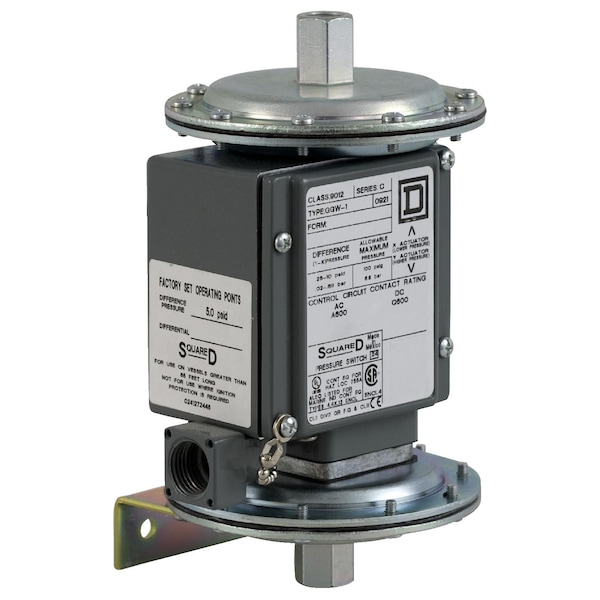

Interruptor de presión, (1) puerto, 1/4-18 in FNPT, DPDT, 0 a 75 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 0.25 to 10 psi |
| Pressure Switch Range | 0 to 75 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Differential | Adjustable Differential Scale |
| Circuit Type | Control Circuit |
| DC Contact Rating | 0.22 A @ 125 V, 0.27 A @ 250 V |
| Actuation Type | Nitrile Diaphragm |
| Max. Pressure | 100 psi |
| Series | 9012G |
| AC Contact Rating | 3 A @ 240 V, 6 A @ 120 V |
| NEMA Rating | NEMA 4/4X/13 |
| Standards | UL 508; CSA C22.2 No 14; CE; CSA LR25490 class 3211 03 |
| Electrical Connection | Screw-Clamp Terminals |
| Temp. Range | -10 to 185°F |
| Housing Material | Die cast aluminium alloy |
| Type | Electromechanical Pressure Switch |
| Overall Width | 5.05 in |
| Overall Height | 8.02 in |
| Product Type | Air Pressure Switch, Water |
| Pressure - Maximum | 100 psi |
| Pressure Connection Type | NPT |
| Overall Depth | 4.56 in |
| Package Quantity | 1 |
