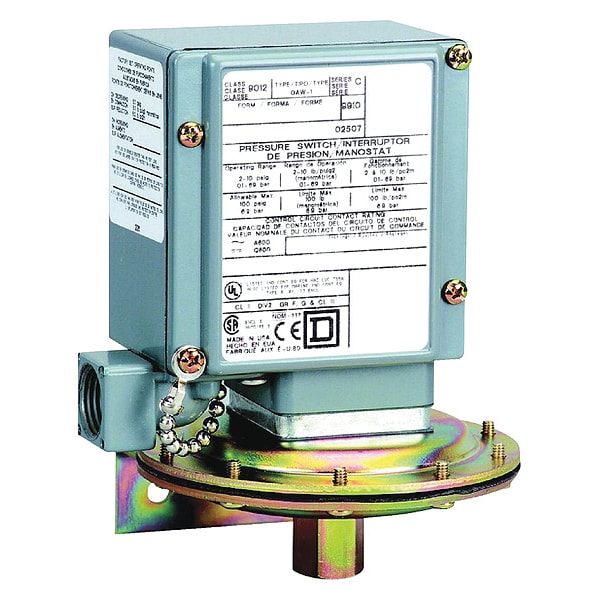

Interruptor de presión, (1) puerto, 1/4-18 en FNPT, DPDT, 0.2 a 10 psi, Acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 0.6 to 2 psi |
| Pressure Switch Range | 0.2 to 10 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Electrical Connection | Screw-Clamp Terminals |
| Circuit Type | Control Circuit |
| Temp. Range | -10 to 185°F |
| Max. Pressure | 100 psi |
| NEMA Rating | NEMA 4/4X/13 |
| Housing Material | Die cast aluminium alloy |
| Differential | Adjustable Differential Scale |
| Standards | UL 508; CSA C22.2 No 14; CSA LR25490 class 3211 03; UL listed file E12158 CCN NKPZ and CCN NTHT; CE |
| Actuation Type | Nitrile Diaphragm |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
