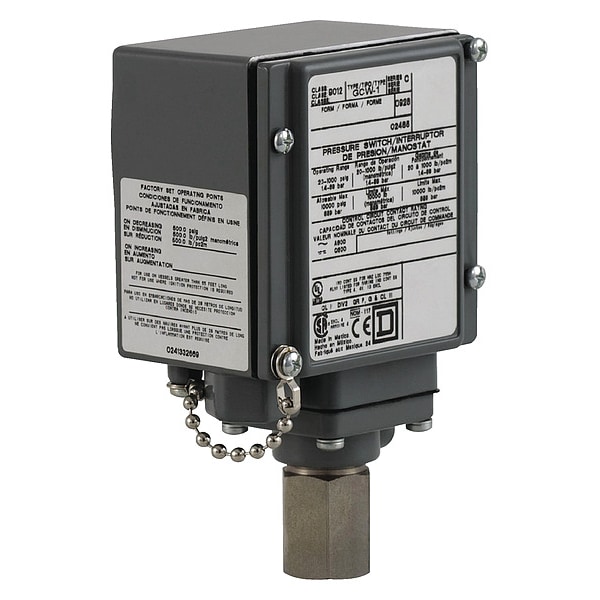

Interruptor de presión, (1) puerto, 1/4-18 pulgadas NPT hembra, DPDT, 170 a 5600 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 289 to 1,260 psi |
| Pressure Switch Range | 170 to 5,600 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Differential | Adjustable Differential Scale |
| Max. Pressure | 20,000 psi |
| Special Features | Mercury Free; Green Premium product |
| Housing Material | Die cast aluminium alloy |
| NEMA Rating | NEMA 4/4X/13 |
| Actuation Type | Piston |
| Temp. Range | -10 to 185°F |
| Circuit Type | Control Circuit |
| Electrical Connection | Screw-Clamp Terminals |
| Standards | CE; UL 508; UL listed file E12158 CCN NKPZ and CCN NTHT; CSA LR25490 class 3211 03 |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
