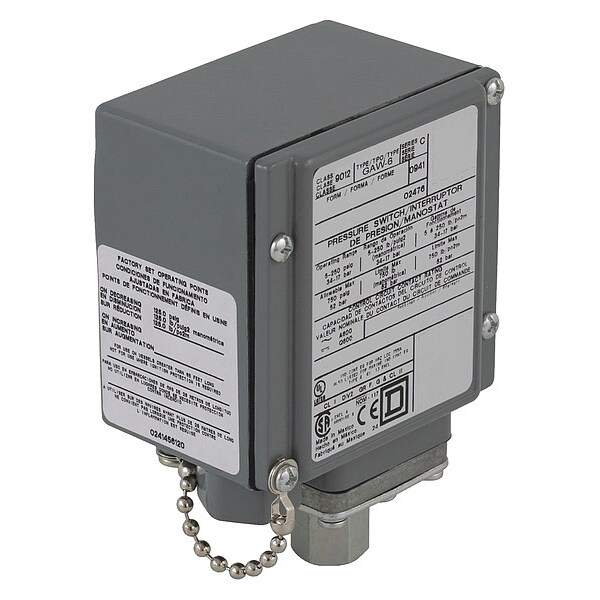

Interruptor de presión, (1) Puerto, 1/4-18 pulgadas de rosca hembra NPT, DPDT, 3 a 150 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 6 psi |
| Pressure Switch Range | 3 to 150 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Electrical Connection | Screw-Clamp Terminals |
| Max. Pressure | 475 psi |
| NEMA Rating | NEMA 4/4X/13 |
| Standards | UL 508; CE; CSA C22.2 No 14; CSA LR25490 class 3211 03 |
| Differential | Fixed Differential Scale |
| Temp. Range | -10 to 185°F |
| Housing Material | Die cast aluminium alloy |
| Actuation Type | Nitrile Diaphragm |
| Circuit Type | Control Circuit |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
