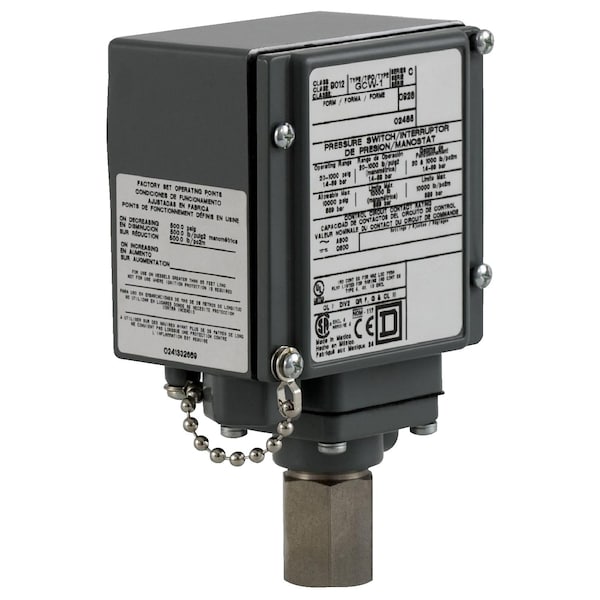

Interruptor de presión, (1) puerto, 1/4-18 pulgadas de FNPT, DPDT, 90 a 2900 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 170 to 560 psi |
| Pressure Switch Range | 90 to 2,900 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Temp. Range | -10 to 185°F |
| Circuit Type | Control Circuit |
| Standards | CE; CSA C22.2 No 14; CSA LR25490 class 3211 03; UL listed file E12158 CCN NKPZ and CCN NTHT |
| Differential | Adjustable Differential Scale |
| NEMA Rating | NEMA 4/4X/13 |
| Actuation Type | Piston |
| Max. Pressure | 15,000 psi |
| Electrical Connection | Screw-Clamp Terminals |
| Housing Material | Die cast aluminium alloy |
| Special Features | Mercury Free; Green Premium product |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
