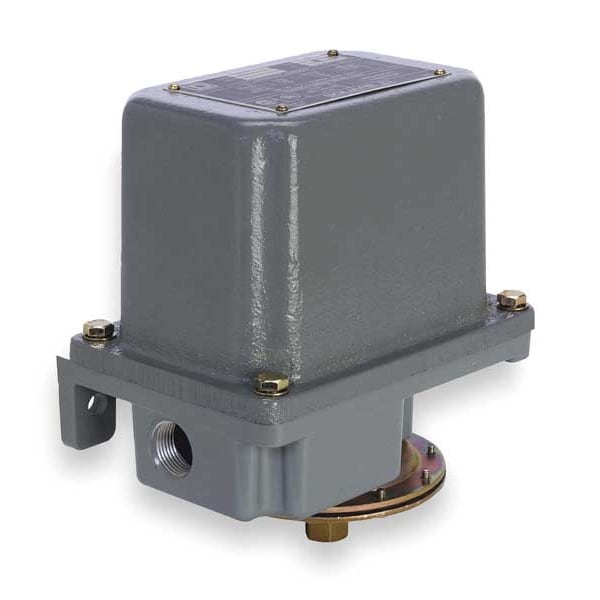

Interruptor de presión, (1) puerto, 1/4-18 pulgadas hembra tipo FNPT, SPDT, 1.5 a 75 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 4.5 to 15 psi |
| Pressure Switch Range | 1.5 to 75 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Series | 9012G |
| Actuation Type | Diaphragm |
| Port Type | 1-Port 1/4-18 in FNPT |
| Action | Standard |
| Range | 1.5 to 75 psi |
| NEMA Rating | 7, 9 |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| Contact Form | SPDT |
| Differential | 4.5 to 15 psi |
| AC Contact Rating | 10A @ 480V |
| IP Rating | 54 |
| Electrical Connection | Screw-Clamp Terminals |
| Housing Material | Cast Aluminium |
| Circuit Type | Control Circuit |
| Temp. Range | -10 to 185°F |
| Max. Pressure | 240 psi |
| Special Features | Mercury Free; Green Premium product |
| Standards | CE, CSA C22.2, RoHS |
| Type | Electromechanical Pressure Switch |
| Pressure - Maximum | 75 psi |
| Differential Pressure - Maximum | 15 psi |
| Overall Width | 7.13 in |
| Media Temperature - Maximum | 250 deg F |
| Pressure - Minimum | 1.5 psi |
| Overall Depth | 5.34 in |
| Overall Height | 7.2 in |
| Proof Pressure | 240 psi |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Maximum | 185 deg F |
| Media Temperature - Minimum | -40 deg F |
| Deadband Adjustability | Adjustable |
| Differential Pressure - Minimum | 4.5 psi |
| Number of Pressure Connection Ports | 1 |
| NEMA Enclosure Rating | 7, 9 |
| Pressure Connection Type | 1/4-18" FNPT |
| Operating Temperature - Minimum | -10 deg F |
| Package Quantity | 1 |
