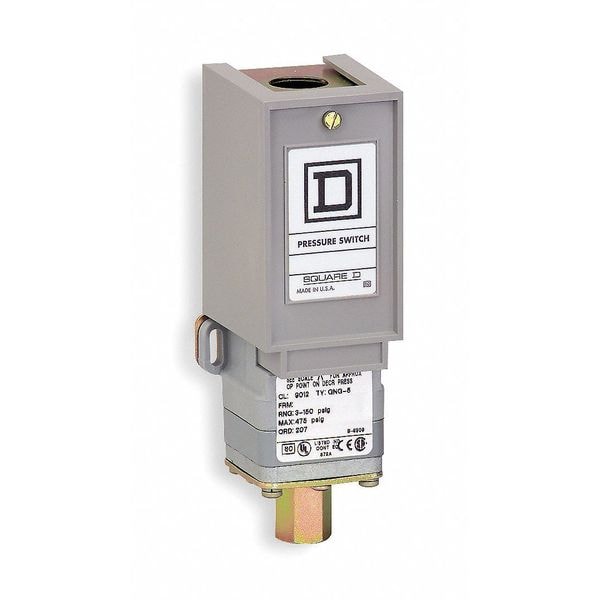

Interruptor de presión, (1) puerto, 1/4-18 pulgadas hembra NPT, SPDT, de 170 a 5600 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 200 to 950 psi |
| Pressure Switch Range | 170 to 5,600 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Series | 9012G |
| Range | 170 to 5,600 psi |
| AC Contact Rating | 10A @ 480V |
| Ambient Temp. Range | -10 to 185 deg F |
| NEMA Rating | 1 |
| Actuation Type | Piston |
| Port Type | 1-Port 1/4-18 in FNPT |
| Action | Standard |
| Differential | 200 to 950 psi |
| Media Temp. Range | -40 to 250 deg F |
| Contact Form | SPDT |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| Standards | CE, CSA C22.2, RoHS, UL 508 |
| Special Features | Mercury Free; Green Premium product |
| Housing Material | Thermoplastic |
| Electrical Connection | Screw-Clamp Terminals |
| Max. Pressure | 20,000 psi |
| Circuit Type | Control Circuit |
| IP Rating | 54 |
| Temp. Range | -10 to 185°F |
| Type | Electromechanical Pressure Switch |
| Deadband Adjustability | Adjustable |
| Overall Depth | 2-3/4 in |
| Pressure Connection Type | 1/4-18" FNPT |
| Operating Temperature - Minimum | -10 deg F |
| NEMA Enclosure Rating | 1 |
| Overall Width | 2.21 in |
| Manufacturer Warranty Length | 18 mo |
| Media Temperature - Minimum | -15 deg F |
| Differential Pressure - Minimum | 200 psi |
| Media Temperature - Maximum | 250 deg F |
| Differential Pressure - Maximum | 950 psi |
| Number of Pressure Connection Ports | 1 |
| Proof Pressure | 20,000 psi |
| Pressure - Minimum | 170 psi |
| Operating Temperature - Maximum | 185 deg F |
| Overall Height | 7.77 in |
| Pressure - Maximum | 5,600 psi |
| Package Quantity | 1 |
