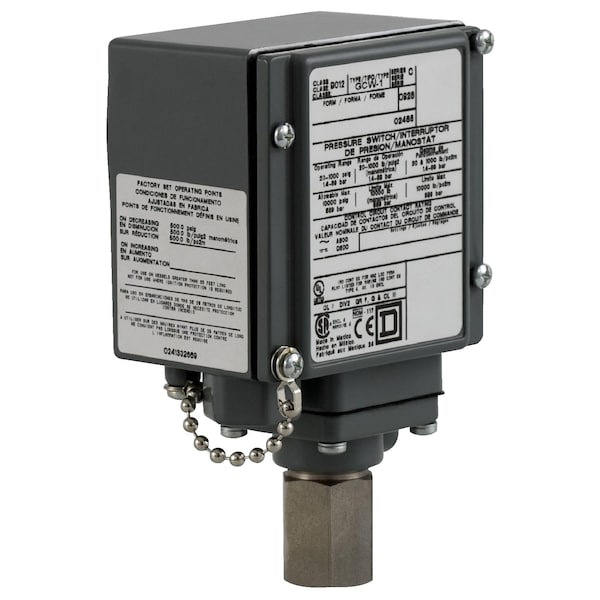

Interruptor de presión, (1) Puerto, 1/4-18 en FNPT, SPDT, 20 a 1000 psi, Acción Estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 59 to 200 psi |
| Pressure Switch Range | 20 to 1,000 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Differential | Adjustable Differential Scale |
| Circuit Type | Control Circuit |
| Electrical Connection | Screw-Clamp Terminals |
| Standards | CSA C22.2 No 14; CE; UL listed file E12158 CCN NKPZ and CCN NTHT; CSA LR25490 class 3211 03 |
| Temp. Range | -10 to 185°F |
| Housing Material | Die cast aluminium alloy |
| Max. Pressure | 10,000 psi |
| Actuation Type | Piston |
| NEMA Rating | NEMA 4/4X/13 |
| Special Features | Local Display with range scale window |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
