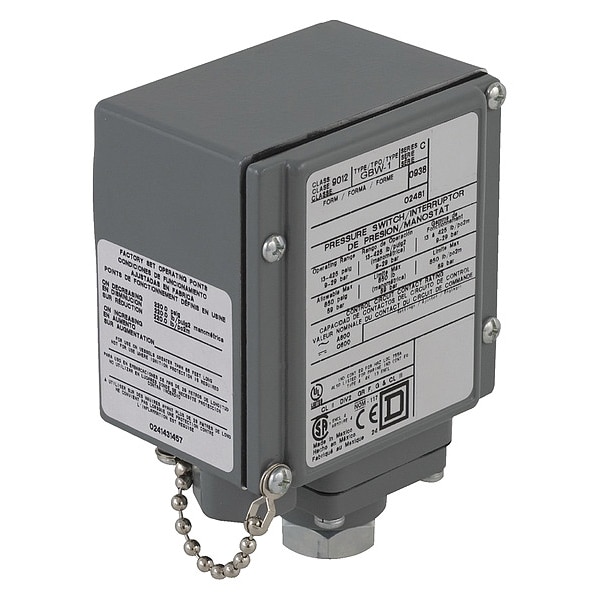

Interruptor de presión, (1) puerto, 1/4-18 pulgadas hembra NPT, SPDT, 20 a 675 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 27 psi |
| Pressure Switch Range | 20 to 675 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| NEMA Rating | NEMA 4/4X/13 |
| Differential | Fixed Differential Scale |
| Max. Pressure | 2,000 psi |
| Temp. Range | -10 to 185°F |
| Housing Material | Die cast aluminium alloy |
| Standards | CE; UL 508; CSA C22.2 No 14; UL listed file E12158 CCN NKPZ and CCN NTHT |
| Electrical Connection | Screw-Clamp Terminals |
| Actuation Type | Nitrile Diaphragm |
| Circuit Type | Control Circuit |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
