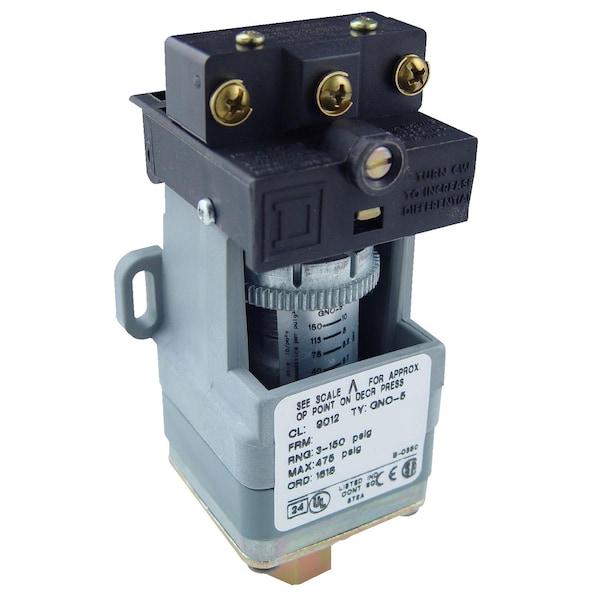

Interruptor de presión, (1) puerto, 1/4-18 pulgadas FNPT, SPDT, 3 a 150 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 4.2 to 22 psi |
| Pressure Switch Range | 3 to 150 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Temp. Range | -10 to 185°F |
| Circuit Type | Control Circuit |
| Standards | CSA C22.2 No 14; CE; CSA LR25490 class 3211 03 |
| Actuation Type | Nitrile Diaphragm |
| Electrical Connection | Screw-Clamp Terminals |
| Max. Pressure | 475 psi |
| NEMA Rating | Not Rated (open device) UL 508 |
| Differential | Adjustable Differential Scale |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
