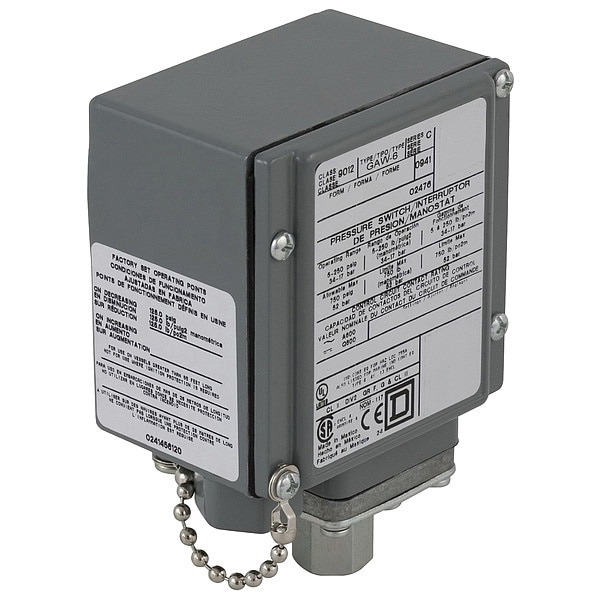

Interruptor de presión, (1) puerto, 1/4-18 pulgadas hembra de rosca nacional para tubería, SPDT, de 5 a 250 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 10 to 1.5 psi |
| Pressure Switch Range | 5 to 250 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| NEMA Rating | 13, 4, 4X |
| Actuation Type | Diaphragm |
| AC Contact Rating | 10A @ 480V |
| Range | 5 to 250 psi |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| Differential | 10 to 1.5 psi |
| Contact Form | SPDT |
| Port Type | 1-Port 1/4-18 in FNPT |
| Action | Standard |
| Series | 9012G |
| Circuit Type | Control Circuit |
| Temp. Range | -10 to 185°F |
| Standards | CE, CSA C22.2, UL 508 |
| Max. Pressure | 750 psi |
| Electrical Connection | Screw-Clamp Terminals |
| IP Rating | 54 |
| Housing Material | Die cast aluminium alloy |
| Type | Electromechanical Pressure Switch |
| Differential Pressure - Maximum | 10 psi |
| Operating Temperature - Minimum | -10 deg F |
| Overall Width | 3-1/2 in |
| Media Temperature - Minimum | -40 deg F |
| Media Temperature - Maximum | 250 deg F |
| Pressure - Minimum | 5 psi |
| Proof Pressure | 750 psi |
| Pressure - Maximum | 250 psi |
| Differential Pressure - Minimum | 1.5 psi |
| Operating Temperature - Maximum | 185 deg F |
| Manufacturer Warranty Length | 18 mo |
| Pressure Connection Type | 1/4-18" FNPT |
| NEMA Enclosure Rating | 4X, 13, 4 |
| Overall Depth | 2.63 in |
| Overall Height | 5.55 in |
| Number of Pressure Connection Ports | 1 |
| Deadband Adjustability | Fixed |
| Package Quantity | 1 |
