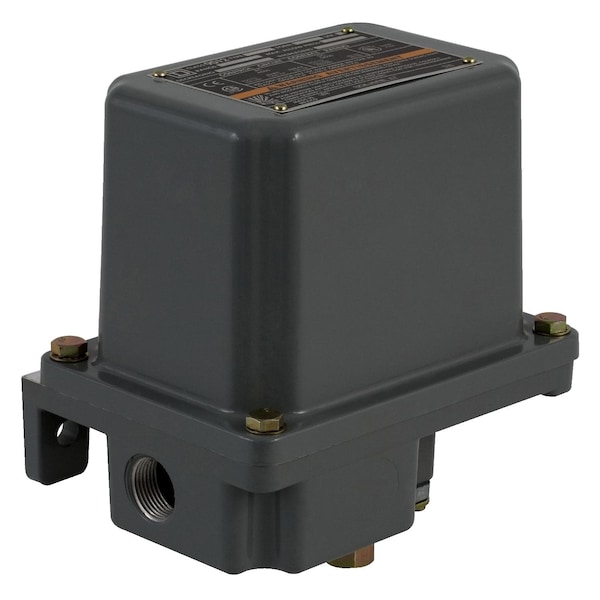

Interruptor de presión, (1) puerto, 1/4-18 pulgadas hembra NPT, SPDT, de 90 a 2900 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 255 to 560 psi |
| Pressure Switch Range | 90 to 2,900 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Actuation Type | Piston |
| Electrical Connection | Screw-Clamp Terminals |
| Housing Material | Cast Aluminium |
| Standards | CSA C22.2 No 14; CE; CSA LR26817 class 3218 02; CSA LR25490 class 3211 03 |
| NEMA Rating | NEMA 7/9 |
| Circuit Type | Control Circuit |
| Temp. Range | -10 to 185°F |
| Differential | Adjustable Differential Scale |
| Max. Pressure | 15,000 psi |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
