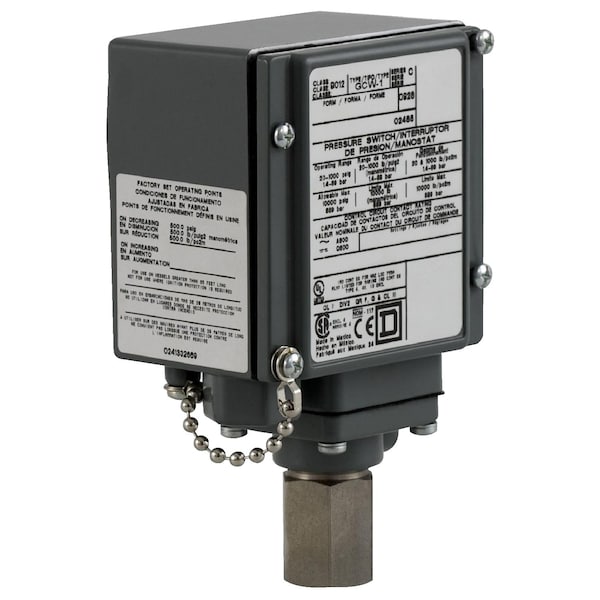

Interruptor de presión, (1) puerto, 1/4-18 pulg. FNPT, SPDT, de 90 a 2900 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 140 psi |
| Pressure Switch Range | 90 to 2,900 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Electrical Connection | Screw-Clamp Terminals |
| NEMA Rating | NEMA 4/4X/13 |
| Actuation Type | Piston |
| Max. Pressure | 15,000 psi |
| Circuit Type | Control Circuit |
| Differential | Fixed Differential Scale |
| Housing Material | Die cast aluminium alloy |
| Standards | CSA C22.2 No 14; CE; UL listed file E12158 CCN NKPZ and CCN NTHT |
| Temp. Range | -10 to 185°F |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
