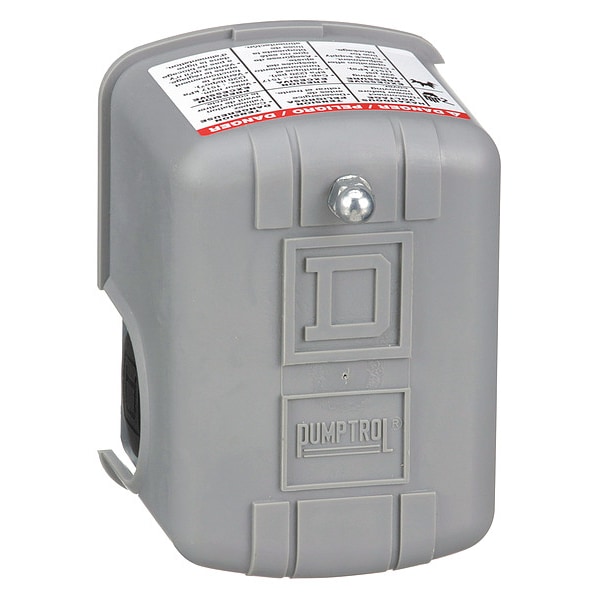

Interruptor de presión, (1) puerto, 1/4 de pulgada de FNPS, DPST, 1 a 9 psi, acción inversa.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pump |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 30/50 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 5 psi |
| Pressure Switch Range | 1 to 9 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Reverse |
| Electrical Connection | Screw-Clamp Terminals |
| Series | 9013FR |
| Actuation Type | Diaphragm |
| HP @ 1 Phase - 240V | 1 hp |
| HP @ 1 Phase - 230V | 1 |
| HP @ 1 Phase - 120V | 1 hp |
| Differential | Fixed Differential Scale |
| Contact Form | 2NO |
| Temp. Range | -33 Degrees to 257 Degrees F |
| IP Rating | IP20 |
| Standards | CSA, UL |
| Special Features | Mercury Free; Green Premium product |
| Burst Pressure | 220 psi |
| Unloader | No Unloader |
| HP @ 3 Phase - 240V | 1 hp |
| NEMA Rating | 1 |
| Circuit Type | Power Circuit |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Type | Electromechanical Pressure Switch |
| Product Type | Water Pump Switch |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Media Temperature - Minimum | -33 deg F |
| Operating Temperature - Maximum | 257 deg F |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Switch Function Configuration | None |
| Media Temperature - Maximum | 257 deg F |
| Horsepower @ Three Phase - 240V AC | 1 HP |
| Factory Off Setting | 10 psi |
| Pressure Connection Type | 1/4" FNPS |
| Number of Pressure Connection Ports | 1 |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 3.71 in |
| NEMA Enclosure Rating | 1 |
| Actuator Style | Diaphragm |
| Differential Pressure - Maximum | 5 psi |
| Operating Temperature - Minimum | -33 deg F |
| Overall Depth | 3.76 in |
| Pressure - Maximum | 14 psi |
| Factory On Setting | 5 psi |
| Overall Width | 2.78 in |
| Pressure - Minimum | 6 psi |
| Package Quantity | 1 |
