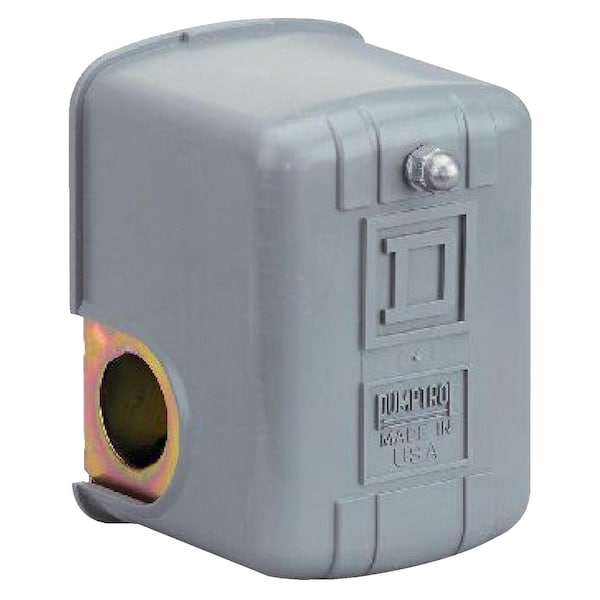

Interruptor de presión, (1) puerto, 1/4 pulg. NPT hembra, DPST, 20 a 65 psi, Acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pump |
| Manual Switch Action | None |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 30/50 psi |
| Pressure Switch Unloader | No |
| Pressure Switch Differential | 15 to 30 psi |
| Pressure Switch Range | 20 to 65 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Contact Form | 2NC |
| Special Features | Mercury Free; Green Premium product |
| NEMA Rating | 1 |
| IP Rating | IP20 |
| HP @ 1 Phase - 230V | 2 |
| Circuit Type | Power Circuit |
| Series | 9013FS |
| Temp. Range | -33 Degrees to 257 Degrees F |
| Standards | CSA, NSF, UL |
| HP @ 3 Phase - 240V | 3 hp |
| Actuation Type | Diaphragm |
| Electrical Connection | Screw-Clamp Terminals |
| HP @ 3 Phase - 480V | 1 HP |
| Burst Pressure | 220 psi |
| HP @ 1 Phase - 240V | 2 hp |
| Differential | Adjustable Differential Scale |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| Unloader | No Unloader |
| Type | Electromechanical Pressure Switch |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Overall Height | 2.8 in |
| Overall Width | 2.78 in |
| Product Type | Water Pump Switch |
| Media Temperature - Minimum | -33 deg F |
| Operating Temperature - Maximum | 257 deg F |
| Pressure - Minimum | 5 psi |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 480V AC | 1 HP |
| Pressure - Maximum | 65 psi |
| Manufacturer Warranty Length | 18 mo |
| Factory On Setting | 20 psi |
| Actuator Style | Diaphragm |
| Differential Pressure - Minimum | 15 psi |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Switch Function Configuration | None |
| Number of Pressure Connection Ports | 1 |
| Operating Temperature - Minimum | -33 deg F |
| Overall Depth | 3.76 in |
| Pressure Connection Type | 1/4" FNPS |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Differential Pressure - Maximum | 30 psi |
| Media Temperature - Maximum | 257 deg F |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Factory Off Setting | 50 psi |
| Package Quantity | 1 |
