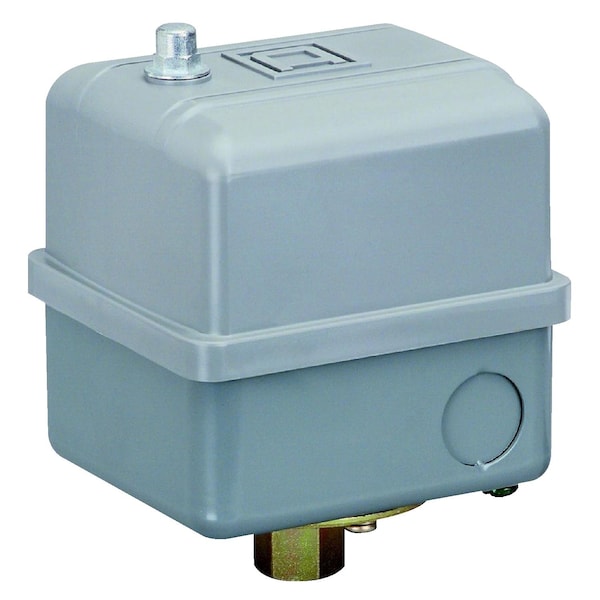

Interruptor de presión, (1) Puerto, 1/4 pulg. FNPS, DPST, 32 a 250 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 120/150 psi |
| Pressure Switch Differential | 24 to 45 psi |
| Pressure Switch Range | 32 to 250 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Differential | Adjustable Differential Scale |
| Standards | NSF ANSI 372; CE; UL 508; UL listed file E12158; CSA file LR25490 |
| Electrical Connection | Screw-Clamp Terminals |
| NEMA Rating | NEMA 1 |
| HP @ 1 Phase - 230V | 3 |
| Circuit Type | Power Circuit |
| Actuation Type | Diaphragm |
| Temp. Range | -33 to 257°F |
| Burst Pressure | 300 psi |
| IP Rating | IP20 |
| Special Features | Mercury Free; Green Premium product |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
