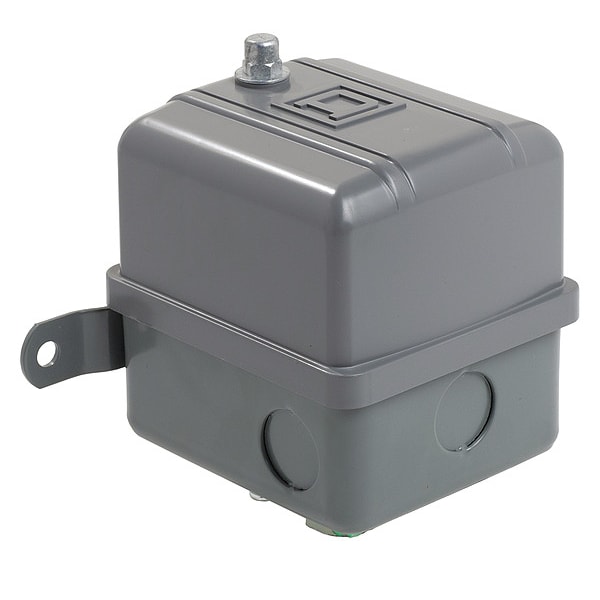

Interruptor de presión, (1) puerto, 1/4 de pulgada FNPS, DPST, 32 a 250 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Differential | 24 to 45 psi |
| Pressure Switch Range | 32 to 250 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Actuation Type | Diaphragm |
| Special Features | Mercury Free; Green Premium product |
| NEMA Rating | NEMA 1 |
| Max. Pressure | 300 psig |
| Standards | UL listed file E12158 CCN NKPZ; CSA file LR25490 |
| Electrical Connection | Screw-Clamp Terminals |
| Voltage | 575V AC |
| Material | Zinc Plated Steel Flange |
| Number of Poles | 2 |
| Package Quantity | 1 |
