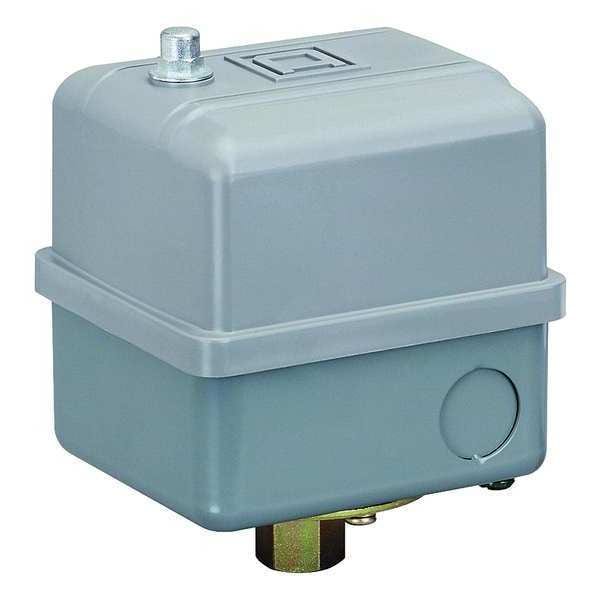

Interruptor de presión, (1) puerto, 1/4 de pulgada FNPS, DPST, 65 a 200 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 50/70 psi |
| Pressure Switch Differential | 20 to 40 psi |
| Pressure Switch Range | 65 to 200 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Special Features | Mercury Free; Green Premium product |
| IP Rating | IP20 |
| Circuit Type | Power Circuit |
| Actuation Type | Diaphragm |
| Differential | Adjustable Differential Scale |
| HP @ 1 Phase - 230V | 3 |
| NEMA Rating | NEMA 1 |
| Electrical Connection | Screw-Clamp Terminals |
| Temp. Range | -33 to 257°F |
| Burst Pressure | 300 psi |
| Standards | UL 508; CE; NSF ANSI 372; CSA file LR25490; UL listed file E12158 |
| Type | Electromechanical Pressure Switch |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Package Quantity | 1 |
