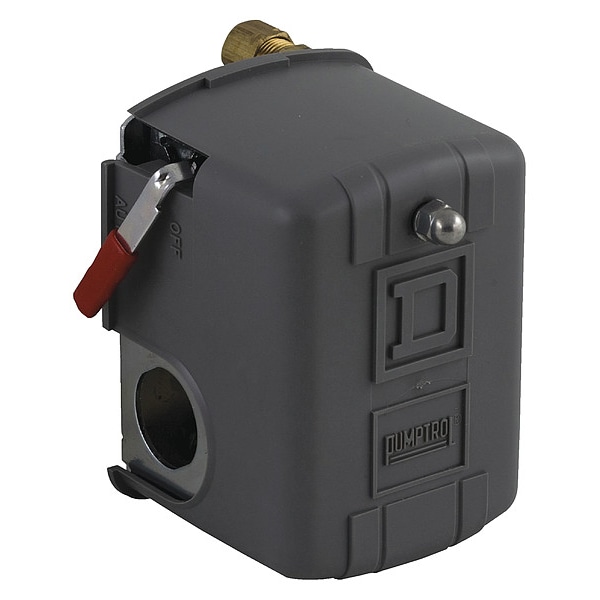

Interruptor de presión, (1) puerto, 1/4 de pulgada MNPT, DPST, 100 a 200 psi, Acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Pressure Switch Port Type | (1) Port, 1/4 in MNPT |
| Pressure Switch Differential | 40 psi |
| Pressure Switch Range | 100 to 200 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Burst Pressure | 220 psi |
| HP @ 1 Phase - 230V | 3 |
| Differential | Fixed Differential Scale |
| Special Features | Mercury Free; Green Premium product |
| Temp. Range | -33 to 257°F |
| Off Set Point | 125 psi |
| IP Rating | IP20 |
| Standards | CE; UL 508; UL listed file E12158; CSA file LR25490 |
| Circuit Type | Power Circuit |
| Electrical Connection | Screw-Clamp Terminals |
| NEMA Rating | NEMA 1 |
| Actuation Type | Diaphragm |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
