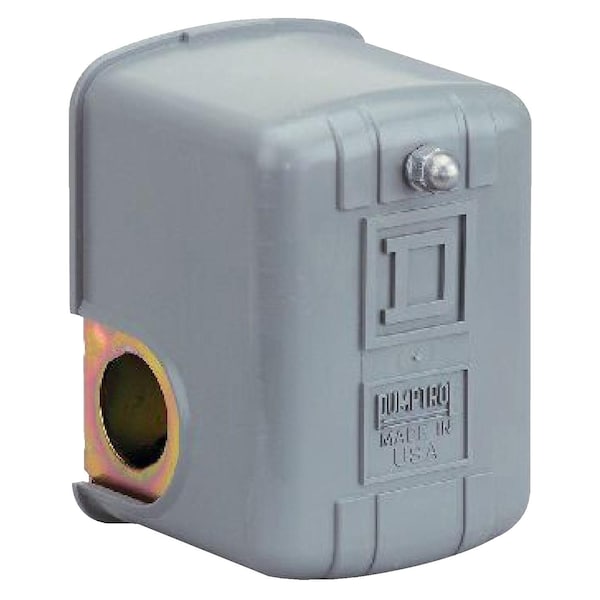

Interruptor de presión, (1) puerto, 1/4 pulgadas macho nacional cónico (MNPT), DPST, de 20 a 65 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pump |
| Pressure Switch Port Type | (1) Port, 1/4 in MNPT |
| Pressure Switch Factory On/Off Setting | 30/50 psi |
| Pressure Switch Differential | 15 to 30 psi |
| Pressure Switch Range | 20 to 65 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| IP Rating | IP20 |
| Electrical Connection | Screw-Clamp Terminals |
| Standards | UL 508; CE; NSF ANSI 61 Annex G; UL listed file E12158; CSA file LR25490 |
| NEMA Rating | NEMA 3R |
| Temp. Range | -33 to 257°F |
| Circuit Type | Power Circuit |
| Differential | Adjustable Differential Scale |
| HP @ 1 Phase - 230V | 2 |
| Burst Pressure | 220 psi |
| Actuation Type | Diaphragm |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
