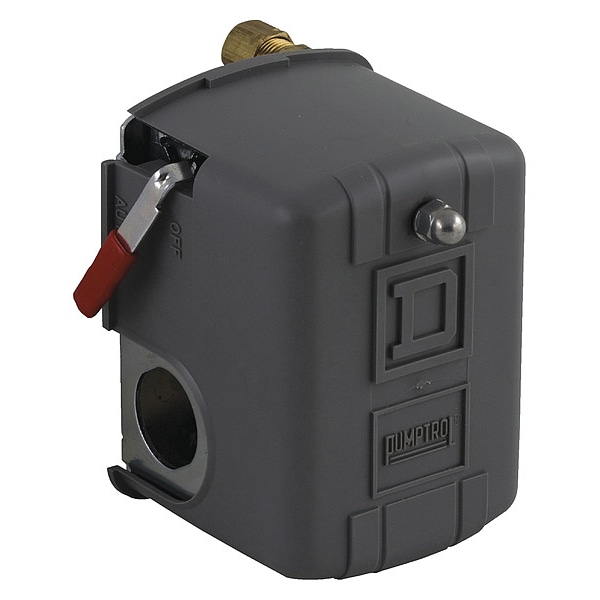

Interruptor de presión, (1) puerto, 1/4 pulg. NPTM, DPST, 70 a 150 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Pressure Switch Port Type | (1) Port, 1/4 in MNPT |
| Pressure Switch Differential | 30 psi |
| Pressure Switch Range | 70 to 150 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Off Set Point | 125 psi |
| Differential | Fixed Differential Scale |
| Burst Pressure | 220 psi |
| NEMA Rating | NEMA 1 |
| IP Rating | IP20 |
| Circuit Type | Power Circuit |
| Temp. Range | -33 to 257°F |
| Standards | UL 508; CE; CSA file LR25490; UL listed file E12158 |
| HP @ 1 Phase - 230V | 2 |
| Electrical Connection | Screw-Clamp Terminals |
| Actuation Type | Diaphragm |
| Type | Electromechanical Pressure Switch |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Package Quantity | 1 |
