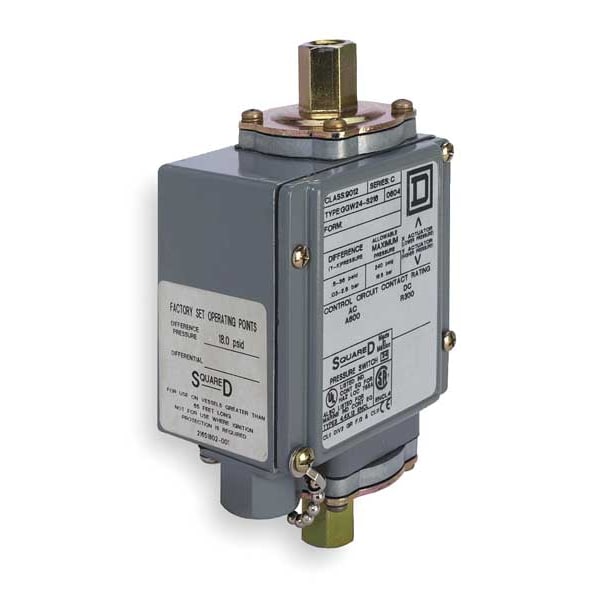

Interruptor de presión, (2) Puertos, 1/4-18 en FNPT, DPDT, 0 a 175 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (2) Port, 1/4-18 in FNPT |
| Pressure Switch Differential | 0.5 to 36 psi |
| Pressure Switch Range | 0 to 175 psi |
| Pressure Switch Electrical Contact Form | DPDT |
| Pressure Switch Action | Standard |
| Contact Form | DPDT |
| Differential | 0.5 to 36 psi |
| Range | 0 to 175 psi |
| Series | 9012G |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| AC Contact Rating | 10A @ 480V |
| Actuation Type | Diaphragm |
| Action | Standard |
| NEMA Rating | 13, 4, 4X |
| Port Type | 2-Port 1/4-18 in FNPT |
| Max. Pressure | 240 psi |
| Electrical Connection | Screw-Clamp Terminals |
| Circuit Type | Control Circuit |
| Standards | CE, CSA C22.2, UL 508 |
| Housing Material | Die cast aluminium alloy |
| Temp. Range | -10 to 185°F |
| IP Rating | 54 |
| Type | Electromechanical Pressure Switch |
| Overall Depth | 2.63 in |
| Differential Pressure - Minimum | 5 psi |
| Operating Temperature - Maximum | 185 deg F |
| Pressure Connection Type | 1/4-18" FNPT |
| Deadband Adjustability | Adjustable |
| Overall Height | 7.08 in |
| Overall Width | 3-1/2 in |
| NEMA Enclosure Rating | 4X, 13, 4 |
| Number of Pressure Connection Ports | 2 |
| Operating Temperature - Minimum | -10 deg F |
| Differential Pressure - Maximum | 15 psi |
| Media Temperature - Maximum | 250 deg F |
| Pressure - Maximum | 175 psi |
| Pressure - Minimum | 0 psi |
| Manufacturer Warranty Length | 18 mo |
| Proof Pressure | 240 psi |
| Media Temperature - Minimum | -40 deg F |
| Package Quantity | 1 |
