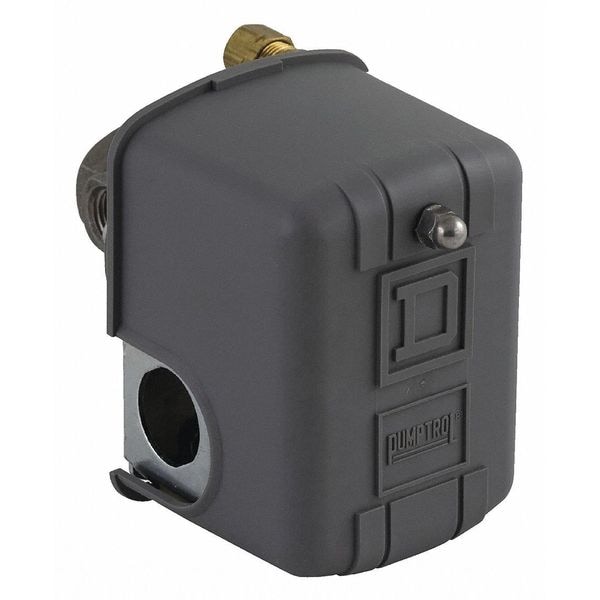

Interruptor de presión, (4) puertos, 1/4 de pulgada hembra a FNPS, DPST, de 40 a 150 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor |
| Manual Switch Action | None |
| Pressure Switch Port Type | (4) Port, 1/4 in FNPS |
| Pressure Switch Factory On/Off Setting | 95/125 psi |
| Pressure Switch Unloader | 1/4 in Compression |
| Pressure Switch Differential | 30 psi |
| Pressure Switch Range | 40 to 150 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| HP @ 3 Phase - 480V | 1 HP |
| Special Features | Nitrile (Buna-N) Diaphragm |
| HP @ 3 Phase - 240V | 3 hp |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| HP @ 1 Phase - 240V | 2 hp |
| Series | 9013FHG |
| NEMA Rating | 1 |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| Temp. Range | -22 Degrees to 257 Degrees F |
| AC Contact Rating | 10A @ 575V |
| DC Contact Rating | 1/4 HP @ 115VDC, 1/4 HP at 230VDC |
| Unloader | 1/4 in Compression Unloader Included |
| Electrical Connection | Screw-Clamp Terminals |
| Actuation Type | Diaphragm |
| HP @ 1 Phase - 230V | 2 |
| IP Rating | IP20 |
| Contact Form | 2NC |
| Burst Pressure | 220 psi |
| Differential | Fixed Differential Scale |
| Features | Pumptrol |
| Phase | Single, Three |
| Circuit Type | Power Circuit |
| Material | Noryl Thermoplastic Resin Cover, Polypropylene Cover |
| Type | Electromechanical Pressure Switch |
| Product Type | Air Compressor Switch |
| Horsepower @ Three Phase - 480V AC | 1 HP |
| Pressure Switch Action Type | Standard |
| Media Temperature - Maximum | 257 deg F |
| Pressure - Maximum | 150 psi |
| Pressure - Minimum | 40 psi |
| Factory Off Setting | 125 psi |
| Pressure Connection Type | 1/4" FNPS |
| Switch Function Configuration | None |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 2.78 in |
| Overall Height | 4.45 in |
| Operating Temperature - Maximum | 257 deg F |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| NEMA Enclosure Rating | 1 |
| Differential Pressure - Maximum | 30 psi |
| Number of Pressure Connection Ports | 4 |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Media Temperature - Minimum | -33 deg F |
| Factory On Setting | 95 psi |
| Actuator Style | Diaphragm |
| Operating Temperature - Minimum | -33 deg F |
| Overall Depth | 3.76 in |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Package Quantity | 1 |
