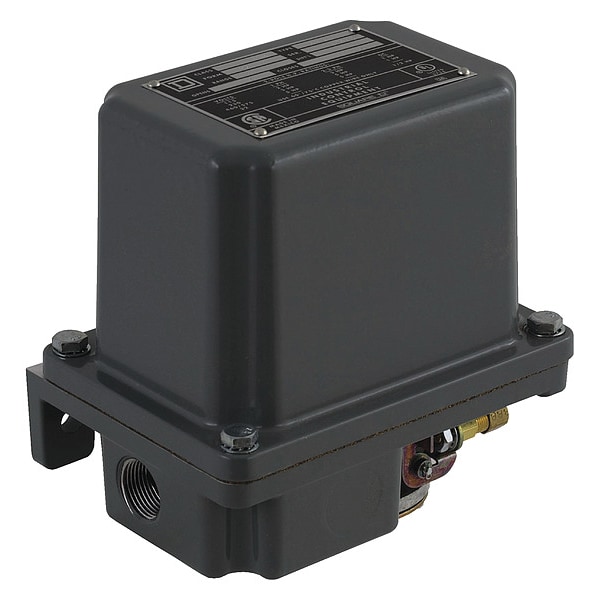

Interruptor de presión, DPST, de 35 a 200 psi, Acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Factory On/Off Setting | 145/175 psi |
| Pressure Switch Differential | 30 to 50 psi |
| Pressure Switch Range | 35 to 200 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| IP Rating | IP20 |
| Standards | NSF ANSI 372; CE; UL 508; CSA file LR25490; UL listed file E12158 |
| HP @ 1 Phase - 230V | 3 |
| Differential | Adjustable Differential Scale |
| NEMA Rating | NEMA 4 |
| Burst Pressure | 250 psi |
| Actuation Type | Diaphragm |
| Temp. Range | -22 to 257°F |
| Electrical Connection | Screw-Clamp Terminals |
| Circuit Type | Power Circuit |
| Special Features | Mercury Free; Green Premium product |
| Material | Cast Aluminium Enclosure |
| Type | Electromechanical Pressure Switch |
| Package Quantity | 1 |
