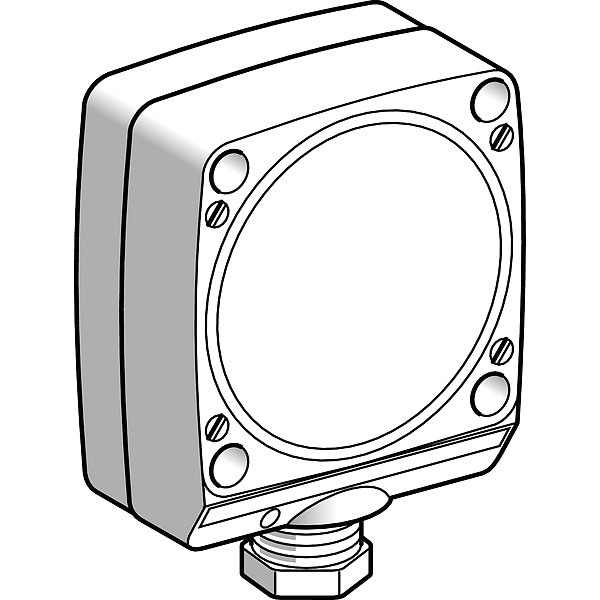

Sensor de proximidad, 12 a 240 V CA, plástico
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Proximity Sensor Style | Form 80 x 80 x 40 |
| Item | Inductive Proximity Sensors XS |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO/NC |
| Length | 100 mm |
| Max. Detecting Distance | 40 mm |
| Width | 80 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | Plastic |
| Proximity Sensor Operating Frequency | 10 Hz |
| Operating Temp. Range | -25 to 85 deg C |
| IP Rating | 67 |
| Standards | CCC, EU ROHS, REACh |
| Max. Current Load | 500 mA |
| Description/Special Features | 5 Positions Turret Head Detection Face |
| Application | General Purpose |
| Series | XSD |
| Switching Capacity | 500 mA |
| Body Type | fixed |
| Package Quantity | 1 |
