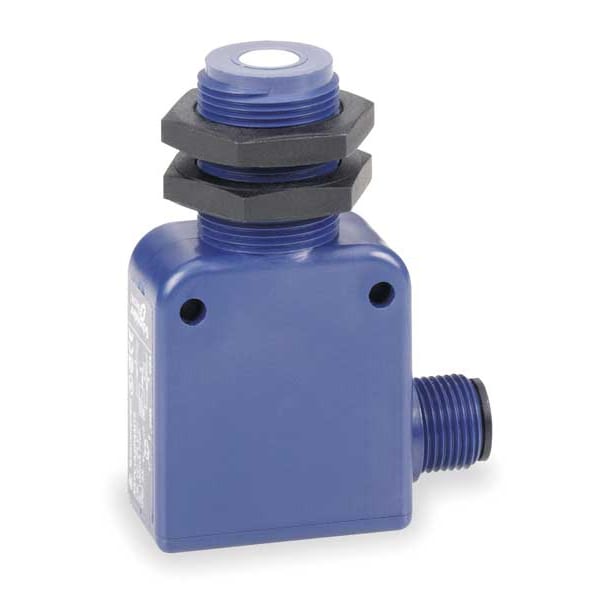

Sensor de proximidad, ajustable a 508mm, NPN, normalmente abierto.
| Item | Rectangular Ultrasonic Sensor |
|---|---|
| Circuit Type | NO |
| Length | 44 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Max. Load | 100 mA |
| Detecting Distance | 508 mm |
| Electrical Connection | 4 Pin M12 Male Connector |
| IP Rating | 67 |
| Output | NPN |
| Case Material | Plastic |
| Operating Frequency | 40 Hz |
| Operating Temp. Range | -20 to 65 deg C |
| NEMA Rating | 12, 13, 4, 4X, 6, 6P |
| Description/Special Features | LED Status Indicator, Over Voltage, Reverse Polarity |
| Standards | CE Compliance, RoHS, UL Listed |
| Length (Straight Wireway) | 44 mm |
| Material | Plastic |
| Switching Frequency | <= 40 Hz |
| Maximum Voltage Drop | 1 V |
| Repeat Accuracy | 0.0127 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Status Led | supply on 1 LED green) || output state 1 LED yellow) |
| Front Material | epoxy |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| [Sn] Nominal Sensing Distance | 0.5-0.5 m adjustable with remote teach push-button |
| [Sd] Sensing Range | 0.051-0.508 m |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Blind Zone | 0-51 mm |
| Height | 44 mm |
| Sensor Design | flat form 18 x 33 x 60 + cylindrical M18 |
| Beam Angle | 12° |
| Discrete Output Type | NPN |
| Sensor Type | ultrasonic sensor |
| Maximum Differential Travel | 2.5 mm |
| Current Consumption | 40 mA |
| Maximum Switching Current | 100 mA |
| [Sa] Assured Operating Distance | 0.051-0.508 m teach mode |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Enclosure Material | valox |
| Wiring Technique | 3-wire |
| Detection System | diffuse |
| Series Name | general purpose |
| Product Certifications | UL |
| Type Of Output Signal | discrete |
| Discrete Output Function | 1 NO |
| Maximum Delay First Up | 100 msec |
| Transmission Frequency | 300 kHz |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Supply Voltage Limits | 10-28 V DC |
| Maximum Delay Response | 10 msec |
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm 0.15 m || flat bar 1 mm wide 0.15 m |
| Marking | CE |
| Sensor Name | XX7 |
| Ambient Air Temperature For Storage | -40-80°C |
| Ambient Air Temperature For Operation | -20-65°C |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 10 msec |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Package Quantity | 1 |
