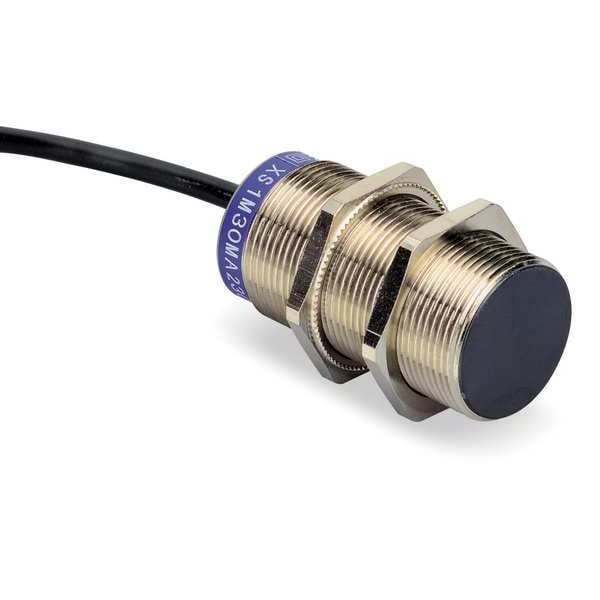

Sensor de proximidad inductivo de 20 mm, NPN, Normalmente Abierto.
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Length | 41 mm |
| Proximity Sensor Diameter | 30 mm |
| Max. Detecting Distance | 20 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Basic Proximity Sensor Case Material | Metal |
| Shielded / Unshielded | Shielded |
| Proximity Sensor Operating Frequency | 500 Hz |
| Case Material | Nickel Plated Brass |
| Standards | CE Compliance, CSA Certified, RoHS, UL Listed |
| Max. Current Load | 200 mA |
| Description/Special Features | 360 Degrees Indicators and Extended Range, Overload And Short-Circuit Protection, Reverse Polarity Protection, Yellow LED Output Indication |
| IP Rating | 68, 69K |
| Operating Temp. Range | -13 to 122 deg F |
| NEMA Rating | 4X |
| Length (Straight Wireway) | 41 mm |
| Package Quantity | 1 |
