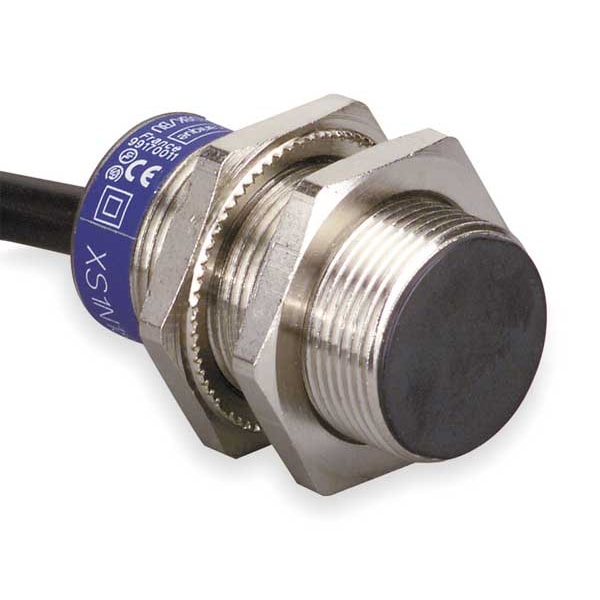

Sensor de proximidad, inductivo, 8mm, 2 hilos, NC.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 6.4 mm |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NC |
| Length | 41 mm |
| Proximity Sensor Diameter | 18 mm |
| Max. Detecting Distance | 8 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 18 mm |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | PPS |
| Proximity Sensor Operating Frequency | 25 Hz AC/2000 Hz DC |
| Standards | CCC, CE Compliance, CSA Certified, UL Listed |
| Operating Temp. Range | -13 to 158 deg F |
| IP Rating | 68, 69K |
| Description/Special Features | Yellow LED Output Indication |
| Max. Current Load | 200 mA |
| Length (Straight Wireway) | 41 mm |
| Switching Capacity | 5...200 mA DC || 5...300 mA AC |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Application | General Purpose |
| Series | XS4 |
| Differential Travel | Sr, 1...15% |
| Maximum Voltage Drop | <5.5 V closed) |
| Storage Temp. Range | -40-85 °C |
| Body Type | fixed |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Response | 0.2 msec |
| Maximum Delay First Up | 40 msec |
| Maximum Delay Recovery | 0.2 msec |
| Supply Voltage Limits | 20-264 V AC, DC |
| Package Quantity | 1 |
