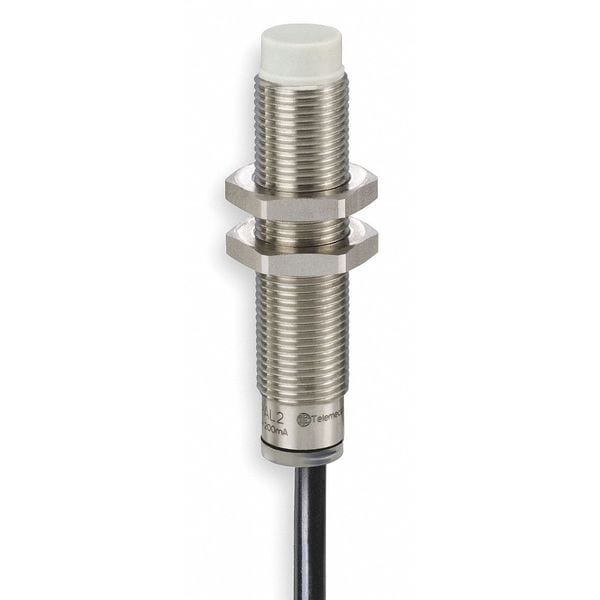

Sensor de proximidad, inductivo, 8mm, PNP, Normalmente Abierto.
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 2 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire PNP |
| Output Mode | NO |
| Proximity Sensor Diameter | 8 mm |
| Length | 41 mm |
| Max. Detecting Distance | 2.5 mm |
| Proximity Sensor Electrical Connection | 4 Pin M12 Connector |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Metal |
| Case Material | Nickel Plated Brass |
| Proximity Sensor Operating Frequency | 3,000 Hz |
| NEMA Rating | 4X |
| Operating Temp. Range | -13 to 158 deg F |
| Max. Current Load | 100 mA |
| Description/Special Features | Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication |
| Standards | CE Compliance, CSA Certified, RoHS, UL Listed |
| IP Rating | 67 |
| Length (Straight Wireway) | 41 mm |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Differential Travel | Sr, 1...15% |
| Maximum Delay First Up | 15 msec |
| Maximum Delay Response | 5 msec |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Storage Temp. Range | -40-85 °C |
| Series | XS2 |
| Supply Voltage Limits | 10-36 V DC |
| Body Type | fixed |
| Maximum Delay Recovery | 0.3 msec |
| Maximum Voltage Drop | <2 V closed) |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Application | General Purpose |
| Package Quantity | 1 |
