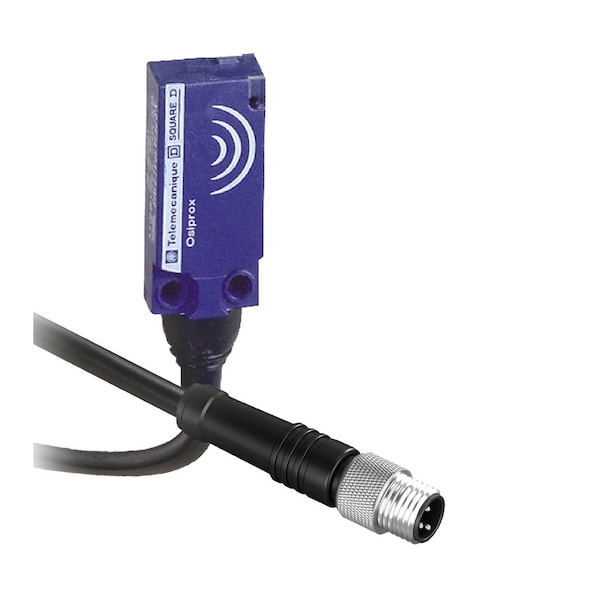

Sensor de proximidad Sz F Dc Pnp Xs7
| Item | Proximity Sensor Sz F Dc Pnp Xs7 |
|---|---|
| Proximity Sensor Style | Flat Form 15 x 32 x 8 |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 4 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NO |
| Length | 32 mm |
| Width | 15 mm |
| Max. Detecting Distance | 4 mm |
| Proximity Sensor Electrical Connection | , 3 Pins, Male Connector M8 |
| Depth | 8 mm |
| Basic Proximity Sensor Case Material | PBT |
| Proximity Sensor Operating Frequency | Less than Or Equal to 2000 Hz |
| Standards | CSA; UL; C-tick; CE Marked |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP68 |
| Application | General Purpose |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Differential Travel | Sr, 1...15% |
| Switching Capacity | <= 100 mA DC overload and short-circuit protection |
| Maximum Delay First Up | 5 msec |
| Body Type | fixed |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Maximum Delay Response | 0.1 msec |
| Supply Voltage Limits | 10-36 V DC |
| Maximum Voltage Drop | <2 V closed) |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Recovery | 0.1 msec |
| Series | XS7 |
| Package Quantity | 1 |
