La descripción traducida sería:

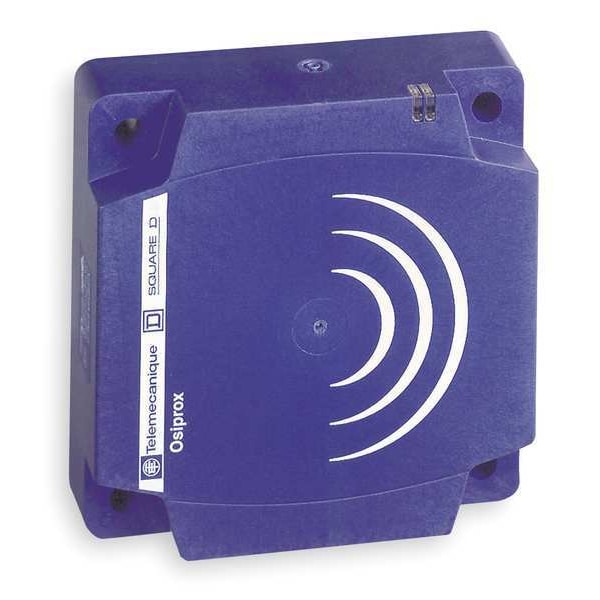

Sensor de proximidad rectangular, de 24 a 240VCA/VCC.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Length | 103 mm |
| Width | 80 mm |
| Max. Detecting Distance | 60 mm |
| Depth | 26 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Shielded |
| Case Material | Plastic |
| Proximity Sensor Operating Frequency | 150 Hz |
| Max. Current Load | 200 mA |
| NEMA Rating | 4X |
| IP Rating | 68, 69K |
| Standards | CE Compliance, CSA Certified, RoHS, UL Listed |
| Description/Special Features | Auto Adaptable |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 103 mm |
| Application | General Purpose |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Supply Voltage Limits | 20-264 V AC, DC |
| Maximum Delay Recovery | 6 msec |
| Body Type | fixed |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Response | 0.3 msec |
| Differential Travel | Sr, 1...15% |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Series | XS8 |
| Switching Capacity | 5...200 mA DC || 5...300 mA AC |
| Maximum Delay First Up | 15 msec |
| Maximum Voltage Drop | <5.5 V closed) |
| Package Quantity | 1 |
