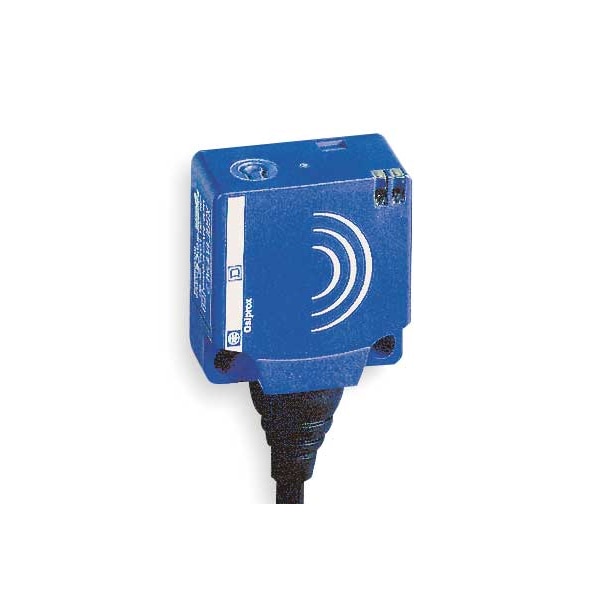

Sensor de proximidad rectangular, inductivo, 2 cables, normalmente abierto.
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 240V AC/DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Length | 26 mm |
| Width | 26 mm |
| Max. Detecting Distance | 15 mm |
| Depth | 13 mm |
| Proximity Sensor Electrical Connection | Male Connector |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | PBT |
| Proximity Sensor Operating Frequency | 2,000 Hz |
| NEMA Rating | 4x |
| Standards | CCC, CE Compliance, CSA Certified, UL Listed |
| Operating Temp. Range | -13 to 158 deg F |
| Max. Current Load | 200 mA |
| Description/Special Features | LED Indicator |
| IP Rating | 67 |
| Length (Straight Wireway) | 26 mm |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Series | XS8 |
| Supply Voltage Limits | 20-264 V AC, DC |
| Body Type | fixed |
| Maximum Voltage Drop | <5.5 V closed) |
| Switching Capacity | 5...200 mA AC/DC |
| Maximum Delay Recovery | 0.8 msec |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Response | 0.3 msec |
| Application | General Purpose |
| Maximum Delay First Up | 10 msec |
| Differential Travel | Sr, 1...15% |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Package Quantity | 1 |
