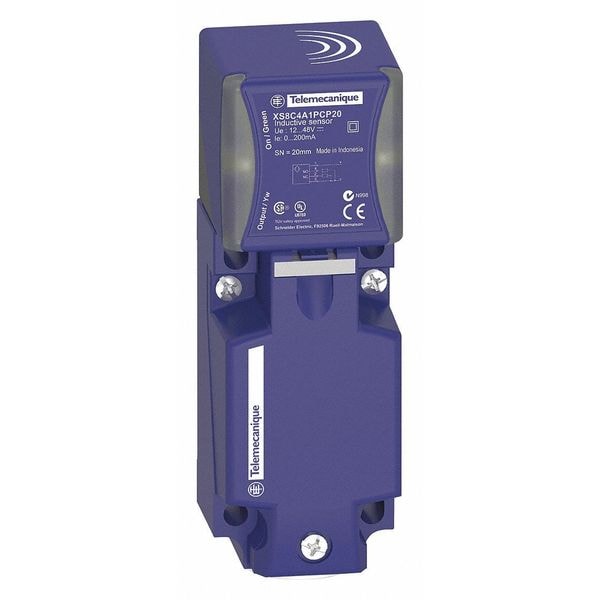

Sensor de proximidad rectangular, analógico de 3 cables.
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 2 to 27 mm |
| Proximity Sensor Power Requirement | 15 to 36 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire Analog |
| Output Mode | 0 to 10V |
| Length | 40 mm |
| Max. Detecting Distance | 25 mm |
| Width | 40 mm |
| Depth | 117 mm |
| Proximity Sensor Electrical Connection | PG13, Screw Terminal |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Proximity Sensor Operating Frequency | 200 Hz |
| Case Material | PBT |
| Description/Special Features | Limit Switch Style Inductive Proximity Sensor |
| Max. Current Load | 10 mA |
| Operating Temp. Range | -13 to 158 deg F |
| Standards | CCC, CE Compliance, CSA Certified, REACh, RoHS, UL Listed |
| IP Rating | 69K, 65, 67 |
| Length (Straight Wireway) | 40 mm |
| Storage Temp. Range | -40-85 °C |
| Body Type | fixed |
| Maximum Delay First Up | 7.5 msec |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Application | General Purpose |
| Series | XS9 |
| Shock Resistance | 50 gn 11 msEN 60068-2-27 |
| Maximum Delay Recovery | 6 msec |
| Maximum Delay Response | 6 msec |
| Supply Voltage Limits | 15-36 V DC |
| Package Quantity | 1 |
