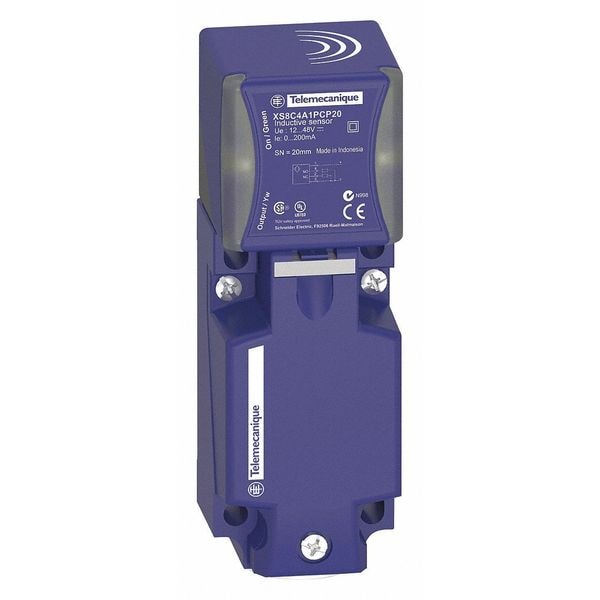

Sensor de proximidad rectangular, inductivo, no blindado.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 2 to 27 mm |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 2 Wire Analog |
| Output Mode | 4 to 20mA |
| Length | 40 mm |
| Width | 40 mm |
| Max. Detecting Distance | 25 mm |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Depth | 117 mm |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | Plastic |
| Max. Current Load | 20 mA |
| Operating Temp. Range | -13 to 158 deg F |
| IP Rating | 69K, 65, 67 |
| Standards | CCC, CE Compliance, CSA Certified, REACh, RoHS, UL Listed |
| Description/Special Features | 5 Positions Turret Head Detection Face; Output State 1 LED Yellow |
| Length (Straight Wireway) | 40 mm |
| Shock Resistance | 50 gn 11 msEN 60068-2-27 |
| Body Type | fixed |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 6 msec |
| Storage Temp. Range | -40-85 °C |
| Maximum Delay Response | 6 msec |
| Series | XS9 |
| Maximum Delay First Up | 7.5 msec |
| Supply Voltage Limits | 12-36 V DC |
| Application | General Purpose |
| Package Quantity | 1 |
