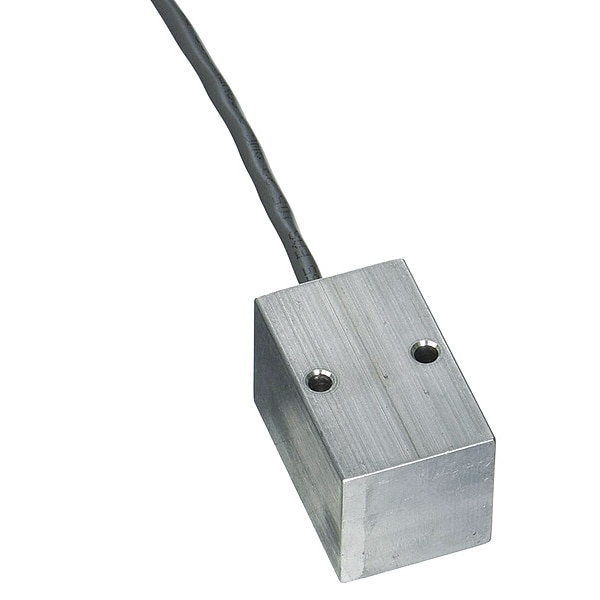

Sensor de proximidad rectangular, magnético, de 2 cables.
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Magnetic |
| Proximity Sensor Power Requirement | 10 to 130 V AC, 10 to 200 V DC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Length | 51 mm |
| Max. Detecting Distance | 1 mm |
| Width | 32 mm |
| Depth | 32 mm |
| Proximity Sensor Electrical Connection | 5m Cable |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Metal |
| Case Material | Aluminum |
| Proximity Sensor Operating Frequency | 2,000 Hz |
| NEMA Rating | 1, 13, 4 |
| Operating Temp. Range | -40 to 140 deg F |
| Max. Current Load | 500 mA |
| Length (Straight Wireway) | 51 mm |
| Package Quantity | 1 |
