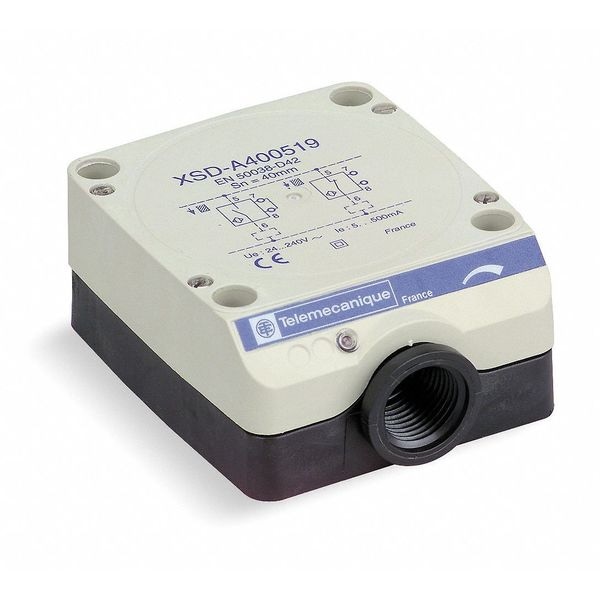

Sensor de proximidad rectangular, inductivo, de 2 cables.
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO/NC |
| Length | 100 mm |
| Width | 80 mm |
| Max. Detecting Distance | 40 mm |
| Depth | 40 mm |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Basic Proximity Sensor Case Material | Plastic |
| Shielded / Unshielded | Unshielded |
| Case Material | Plastic |
| Proximity Sensor Operating Frequency | 10 Hz |
| Max. Current Load | 500 mA |
| IP Rating | 67 |
| Operating Temp. Range | -13 to 158 deg F |
| Standards | CCC |
| Description/Special Features | 5 Positions Turret Head Detection Face |
| Length (Straight Wireway) | 100 mm |
| Application | General Purpose |
| Body Type | fixed |
| Series | XSD |
| Package Quantity | 1 |
