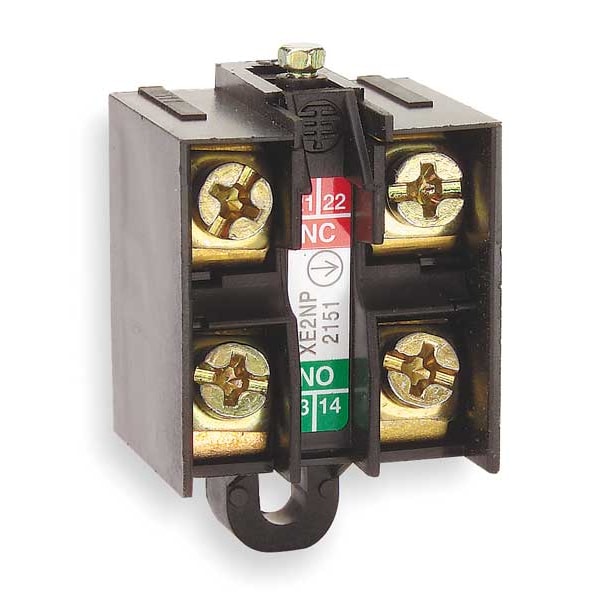

Bloque de contacto de reemplazo, 1NA/1NC
| Item | Contact Block |
|---|---|
| For Use With | XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches |
| Contact Form | 1NO/1NC |
| AC Contact Rating | 10 A @ 600 V |
| Operating Temp. | -77 to 158 deg F |
| Standards | CSA, EN/IEC, UL Listed |
| IP Rating | Not Rated |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Electrical Connection | Screw Terminal |
| Product Or Component Type | limit switch contact block |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| Associated Body | ZCKM5 || ZCKL5 || ZCP25 || ZCKJ5 || ZCD25 || ZCKS5 || ZCKJ5D |
| Contacts Material | silver plated contacts |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| Contact Operation | slow-break, break before make |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
| Positive Opening | with |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Insulation Form | Zb |
| Contacts Type And Composition | 1 NO + 1 NC |
| Series Name | standard format |
| Product Compatibility | XCKD || XCKS || XCR || XCKJ || XCKL || XCKM || XCKP |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Minimum Actuation Speed | 6 m/min |
| Device Short Name | XE2N |
| Number Of Poles | 2 |
| Compatible with Series | XCKD, XCKJ, XCKL, XCKM, XCKP, XCKS, XCR |
| Compatible Operator | Limit Switch |
| Terminal Connection Type | Screw Terminals |
| Package Quantity | 1 |
