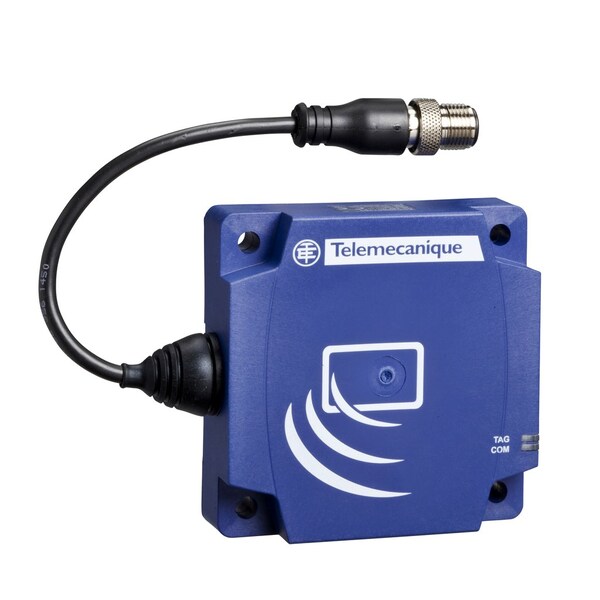

Antena inteligente RFID compacta - 13.56MHz-
| Item | RFID compact smart antenna - 13.56MHz - |
|---|---|
| Measurement Range | 20 to 100 mm |
| Proximity Sensor Power Requirement | 24V DC |
| Max. Detecting Distance | 100 mm |
| Proximity Sensor Electrical Connection | 5 Male Remote Connector M12, Shielded Cable 0.2m |
| Proximity Sensor Operating Frequency | 13.56 MHz |
| Operating Temp. Range | -25 to 70 deg C |
| IP Rating | IP65 |
| Standards | ETSI EN 301 489-3; ETSI EN 301 489-1; ETSI EN 300 330-1; ETSI EN 300 330-2; UL, FCC; CE Marked |
| Max. Current Load | 60 mA |
| Description/Special Features | Communication Network 1 LED Dual Colour; Rfid Communication 1 LED Dual Colour |
| Shock Resistance | 30 gn 11 ms EN 60068-2-27 |
| Storage Temp. Range | -40-85 °C |
| Supply Voltage Limits | 19.2-29 V DC |
| Vibration Resistance | 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6 |
| Package Quantity | 1 |
