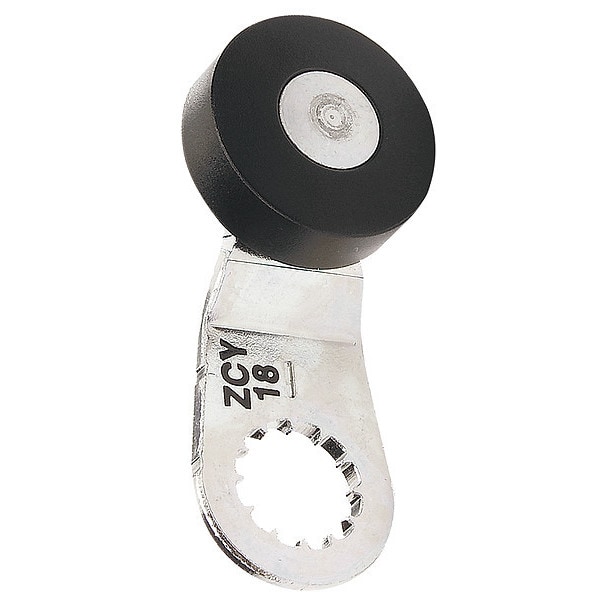

Brazo de palanca de rodillo, 1.34 pulgadas de longitud.
| Item | Limit Switch Lever Arm |
|---|---|
| Arm Length | 0.94 in |
| Roller Dia. | 0.63 in |
| Roller Width | 0.22 in |
| For Use With | Mfr. No. XCMD, XCKD, XCKP, XCKT |
| Roller Position | Front |
| Actuator Type | Standard Roller |
| Arm Depth | 0.94 in |
| Arm Material | Thermoplastic |
| Roller Material | Thermoplastic |
| Standards | REACH, EU RoHS |
| Actuator Style | Rotary Lever Roller |
| Product Or Component Type | limit switch lever |
| Series Name | format |
| Device Short Name | ZCY |
| Ambient Air Temperature For Storage | -40-70°C |
| Tracks | 20/36 mm XCMD || 24/40 mm XCKD || 24/40 mm XCKP || 24/40 mm XCKT |
| Positive Opening | with |
| Switch Actuation | by 30° cam |
| Environmental Characteristic | standard environment |
| Movement Of Operating Head | rotary |
| Associated Head | ZCE05 || ZCE01 |
| Ambient Air Temperature For Operation | -25-70°C |
| Type Of Approach | lateral approach |
| Type Of Operator | roller lever spring return thermoplastic |
| Product Compatibility | XCKP || XCKD || XCMD || XCKT |
| Arm Length - Maximum | 0.94 in |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Minimum | -13 deg F |
| Roller Diameter | 0.63 in |
| Operating Temperature - Maximum | 158 deg F |
| Compatible with Series | XCKD, XCKP, XCKT, XCMD |
| Package Quantity | 1 |
