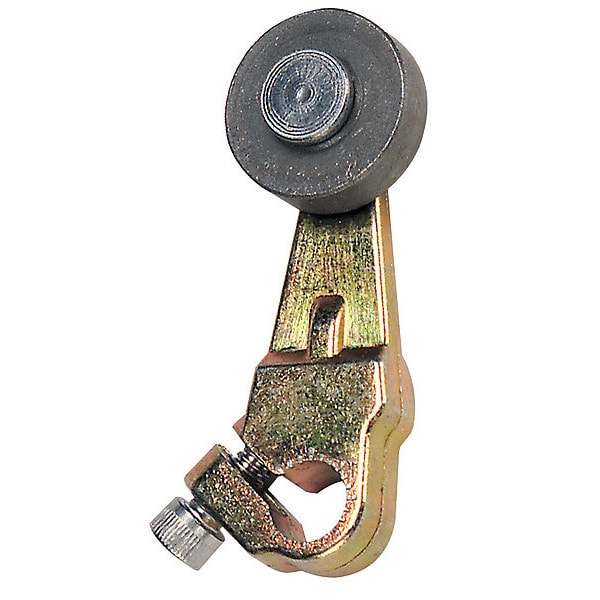

Brazo de palanca de rodillo, brazo de 1.5 pulgadas L.
| Item | Limit Switch Lever Arm |
|---|---|
| Arm Length | 1-1/2 in |
| Roller Dia. | 3/4 in |
| Roller Width | 1/4 in |
| For Use With | Mfr. No. 9007MS |
| Roller Position | Outside Offset |
| Arm Depth | 0.31 in |
| Arm Material | Zinc |
| Arm Width | 0.62 in |
| Roller Material | Steel |
| Actuator Type | Standard Roller |
| Standards | REACH |
| Actuator Style | Rotary Lever Roller |
| Arm Length - Maximum | 1-1/2 in |
| Operating Temperature - Maximum | 221 deg F |
| Operating Temperature - Minimum | -40 deg F |
| Compatible with Series | 9007ML04, 9007MS, 9007MS04 |
| Series | 9007 |
| Roller Diameter | 3/4 in |
| Manufacturer Warranty Length | 18 mo |
| Series Name | miniature potted |
| Ambient Air Temperature For Operation | -40-221°F |
| Product Or Component Type | limit switch lever |
| Ambient Air Temperature For Storage | -40-221°F |
| Type Of Approach | lateral approach |
| Type Of Operator | cast zinc spring return roller lever 1.5-1.5 in - |
| Tracks | 1.375 in |
| Positive Opening | without |
| Associated Complete Product | 9007MS04.. || 9007ML04.. |
| Movement Of Operating Head | rotary |
| Device Short Name | 9007MS/ML |
| Type Of Roller | 1 steel outside roller 0.75 in 0.25 in |
| Environmental Characteristic | standard environment |
| Switch Actuation | by 30° cam |
| Package Quantity | 1 |
