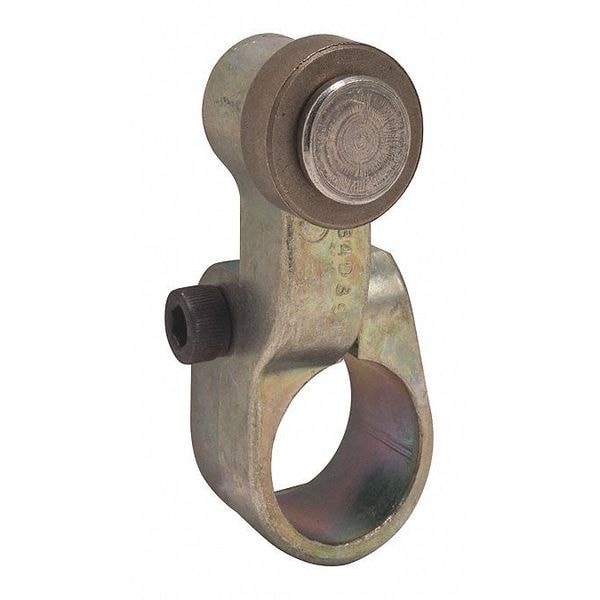

Brazo Palanca de Rodillo, Brazo de 1.5 Pulgadas L.
| Item | Limit Switch Lever Arm |
|---|---|
| Arm Length | 1-1/2 in |
| Roller Dia. | 3/4 in |
| Roller Width | 1/4 in |
| For Use With | 9007C, Mfr. No. 9007T/FT |
| Roller Position | Outside Offset |
| Roller Material | Steel |
| Arm Width | 0.44 in |
| Arm Depth | 0.73 in |
| Arm Material | Zinc |
| Actuator Type | Standard Roller |
| Standards | REACH |
| Actuator Style | Rotary Lever Roller |
| Roller Adjustability | Fixed |
| Roller Diameter | 3/4 in |
| Arm Length - Maximum | 1-1/2 in |
| Arm Length - Minimum | 3/4 in |
| Manufacturer Warranty Length | 18 mo |
| Compatible with Series | 9007C, 9007FT, 9007S9, 9007T |
| Series | 9007 |
| Operating Temperature - Minimum | -10 deg F |
| Operating Temperature - Maximum | 185 deg F |
| Ambient Air Temperature For Storage | -10-185°F |
| Movement Of Operating Head | rotary |
| Switch Actuation | by 30° cam |
| Environmental Characteristic | standard environment |
| Device Short Name | 9007T/FT |
| Associated Head | 9007T10S9 || 9007AS9 || 9007NS9 || 9007CS9 || 9007T5S9 || 9007BS9 |
| Ambient Air Temperature For Operation | -10-185°F |
| Type Of Roller | 1 steel |
| Positive Opening | without |
| Series Name | severe duty |
| Type Of Operator | cast zinc spring return roller lever 1.5-1.5 in 0.75 in - |
| Product Or Component Type | limit switch lever |
| Associated Complete Product | 9007T || 9007FT || 9007C..S9 |
| Type Of Approach | lateral approach |
| Package Quantity | 1 |
