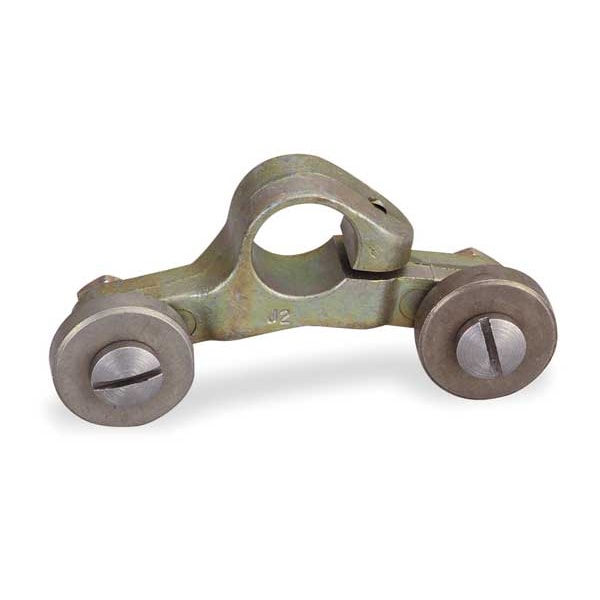

Brazo palanca de rodillo, Brazo de 1.5 pulgadas L.
| Item | Forked Roller Lever |
|---|---|
| For Use With | 9007C, Mfr. No. 9007T/FT |
| Arm Width | 0.73 in |
| Roller Dia. | 1 in |
| Arm Depth | 0.44 in |
| Arm Material | Zinc |
| Arm Length | 1-1/2 in |
| Roller Position | Outside Offset |
| Actuator Type | Forked Roller, 120 Degrees |
| Roller Material | Steel |
| Roller Width | 1/4 in |
| Standards | REACH |
| Actuator Style | Forked Roller |
| Series | 9007 |
| Arm Length - Maximum | 1-1/2 in |
| Operating Temperature - Maximum | 185 deg F |
| Roller Adjustability | Fixed |
| Compatible with Series | 9007C, 9007FT, 9007S9, 9007T |
| Operating Temperature - Minimum | -10 deg F |
| Manufacturer Warranty Length | 18 mo |
| Roller Diameter | 1 in |
| Movement Of Operating Head | rotary |
| Type Of Roller | 2 steel outside roller 1 in 0.25 in |
| Type Of Operator | cast zinc stay put 120° forked arm with rollers 1.5-1.5 in - - |
| Environmental Characteristic | standard environment |
| Positive Opening | without |
| Product Or Component Type | limit switch lever |
| Ambient Air Temperature For Operation | -10-185°F |
| Ambient Air Temperature For Storage | -10-185°F |
| Switch Actuation | by cam |
| Series Name | severe duty |
| Type Of Approach | lateral approach |
| Associated Complete Product | 9007T || 9007FT || 9007C..CS9 |
| Device Short Name | 9007T, FT |
| Associated Head | 9007C..S9 |
| Package Quantity | 1 |
