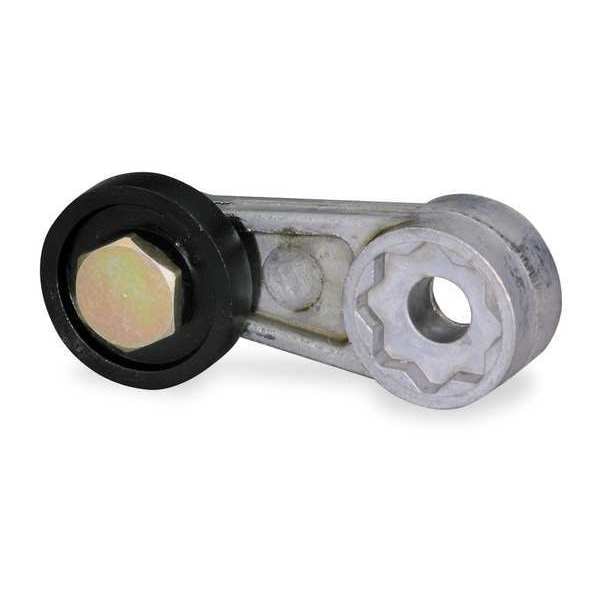

Palanca de rodillo, 1.61 pulgadas de longitud.
| Item | Limit Switch Lever Arm |
|---|---|
| For Use With | Mfr. No. XCKJ, XCKL, XCKM |
| Roller Position | Front |
| Roller Material | Thermoplastic |
| Arm Material | Zinc |
| Arm Depth | 1/2 in |
| Roller Width | 0.2 in |
| Arm Width | 0.17 in |
| Roller Dia. | 0.88 in |
| Actuator Type | Standard Roller |
| Arm Length | 1.61 in |
| Standards | EU RoHS, REACH |
| Actuator Style | Rotary Lever Roller |
| Environmental Characteristic | standard environment || low temperature |
| Switch Actuation | by 30° cam |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Short Name | ZCKY |
| Product Or Component Type | limit switch lever |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Approach | lateral approach |
| Product Compatibility | XCKJ |
| Movement Of Operating Head | rotary |
| Type Of Operator | roller lever spring return thermoplastic -) |
| Associated Head | ZCKE05 |
| Positive Opening | with |
| Series Name | standard format |
| Manufacturer Warranty Length | 18 mo |
| Compatible with Series | XCKJ, XCKL, XCKM |
| Roller Diameter | 0.88 in |
| Arm Length - Maximum | 1.61 in |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
