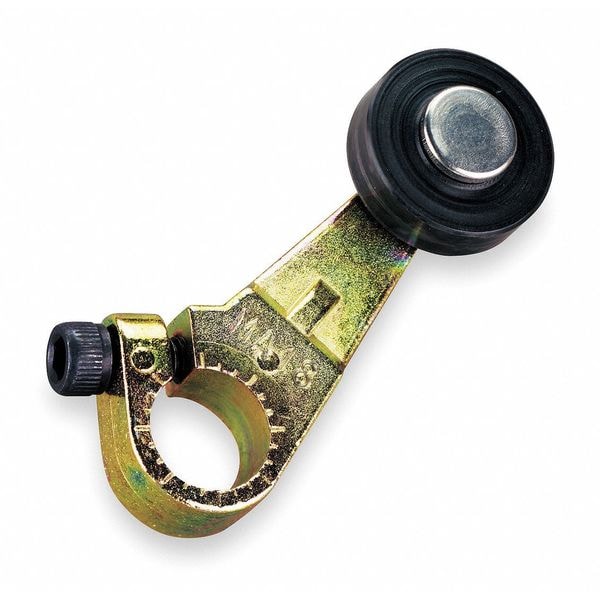

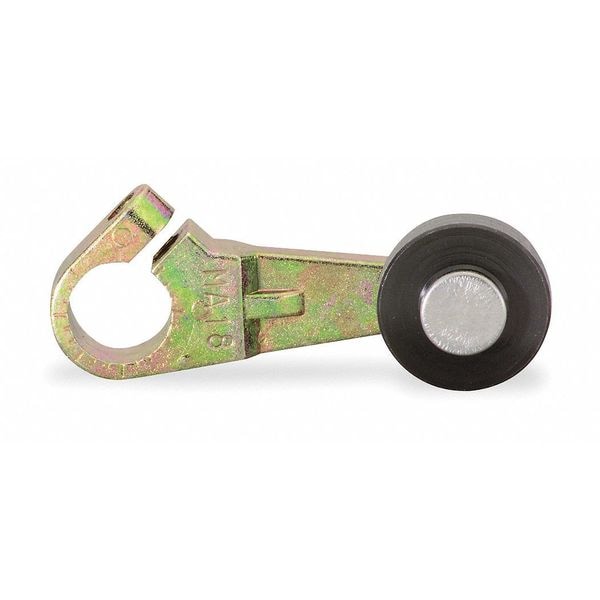

Brazo de Palanca para Rodillo, Brazo de 2 pulgadas.
| Item | Limit Switch Lever Arm |
|---|---|
| Arm Length | 2 in |
| Roller Dia. | 1 in |
| Roller Width | 0.63 in |
| For Use With | 9007AW, Mfr. No. 9007C |
| Roller Position | Outside Offset |
| Roller Material | Nylon |
| Arm Depth | 0.31 in |
| Arm Width | Tapered |
| Arm Material | Zinc |
| Actuator Type | Standard Roller |
| Actuator Style | Rotary Lever Roller |
| Standards | REACH |
| Arm Length - Maximum | 2 in |
| Roller Diameter | 1 in |
| Series | 9007 |
| Operating Temperature - Minimum | -20 deg F |
| Operating Temperature - Maximum | 185 deg F |
| Compatible with Series | 9007AW, 9007C |
| Manufacturer Warranty Length | 18 mo |
| Roller Adjustability | Fixed |
| Positive Opening | without |
| Type Of Roller | 1 nylon outside roller 1 in 0.63 in |
| Ambient Air Temperature For Operation | -20-185°F |
| Associated Complete Product | 9007C || 9007AW |
| Type Of Operator | cast zinc spring return roller lever 2-2 in - - |
| Associated Head | 9007A || 9007C || 9007T10 || 9007T5 || 9007N || 9007B |
| Type Of Approach | lateral approach |
| Movement Of Operating Head | rotary |
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -20-185°F |
| Device Short Name | 9007C |
| Switch Actuation | by 30° cam |
| Product Or Component Type | limit switch lever |
| Series Name | heavy duty |
| Package Quantity | 1 |
