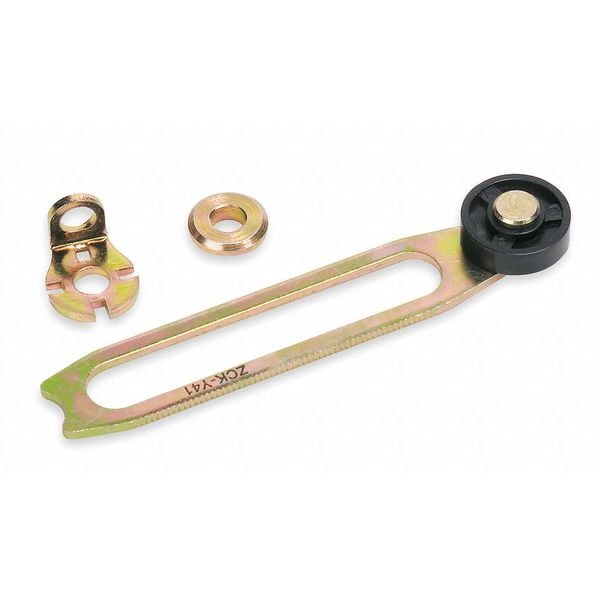

Brazo de palanca de rodillo, 3 pulgadas. Brazo L.
| Item | Limit Switch Lever Arm |
|---|---|
| For Use With | Mfr. No. XCKJ, XCKL, XCKM |
| Roller Width | 0.2 in |
| Arm Length | 1.57 in to 3.34 in |
| Roller Material | Thermoplastic |
| Arm Depth | 0.63 in |
| Arm Width | 0.08 in |
| Arm Material | Steel |
| Roller Position | Front |
| Actuator Type | Adjustable Roller |
| Roller Dia. | 0.88 in |
| Standards | EU RoHS, REACH |
| Actuator Style | Rotary Lever Roller |
| Type Of Operator | roller lever spring return thermoplastic variable length) |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | limit switch lever |
| Positive Opening | without |
| Ambient Air Temperature For Operation | -25-70°C |
| Type Of Approach | lateral approach |
| Associated Head | ZCKE05 || ZCKD05 |
| Device Short Name | ZCKY |
| Movement Of Operating Head | rotary |
| Product Compatibility | XCKS || XCKL || XCKM || XCKJ |
| Series Name | standard format |
| Environmental Characteristic | low temperature || standard environment |
| Switch Actuation | by 30° cam |
| Arm Length - Maximum | 3.34 in |
| Compatible with Series | XCKD, XCKJ, XCKL, XCKM, XCKP, XCKT |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 18 mo |
| Roller Adjustability | Adjustable |
| Roller Diameter | 0.88 in |
| Arm Length - Minimum | 1.57 in |
| Package Quantity | 1 |
