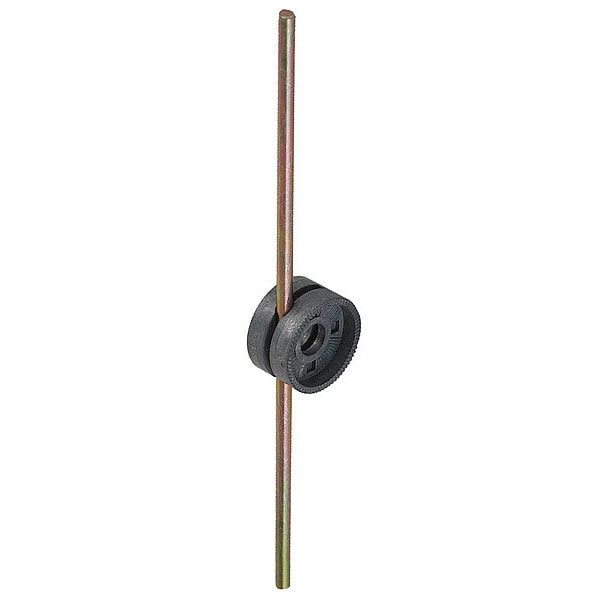

Brazo de palanca de rodillo, 4.92 pulgadas de largo.
| Item | Rod Lever Actuator |
|---|---|
| Arm Length | 4.92 in |
| Roller Dia. | 0.13 in |
| Roller Width | Not Applicable |
| For Use With | Mfr. No. XCKJ, XCKL, XCKM |
| Roller Position | Not Applicable |
| Arm Depth | 0.12 in |
| Arm Material | Metal |
| Actuator Type | Rod |
| Roller Material | Not Applicable |
| Arm Width | 0.13 in |
| Standards | REACH, EU RoHS |
| Actuator Style | Rod |
| Environmental Characteristic | high temperature || low temperature || standard environment |
| Product Compatibility | XCKJ |
| Switch Actuation | by any moving part |
| Ambient Air Temperature For Operation | -25-70°C standard environment || -40-70°C low temperature || 10-120°C high temperature |
| Type Of Approach | lateral approach |
| Type Of Operator | rod lever spring return metal round rod 3 mm, L = 125 mm |
| Series Name | format |
| Device Short Name | ZCKY |
| Ambient Air Temperature For Storage | -40-70°C standard environment || -40-70°C low temperature || 10-120°C high temperature |
| Product Or Component Type | limit switch lever |
| Movement Of Operating Head | rotary |
| Associated Head | ZCKE05 |
| Positive Opening | without |
| Compatible with Series | XCKD, XCKJ, XCKL, XCKM, XCKP, XCKT |
| Manufacturer Warranty Length | 18 mo |
| Roller Diameter | Not Applicable |
| Arm Length - Maximum | 4.92 in |
| Roller Adjustability | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
