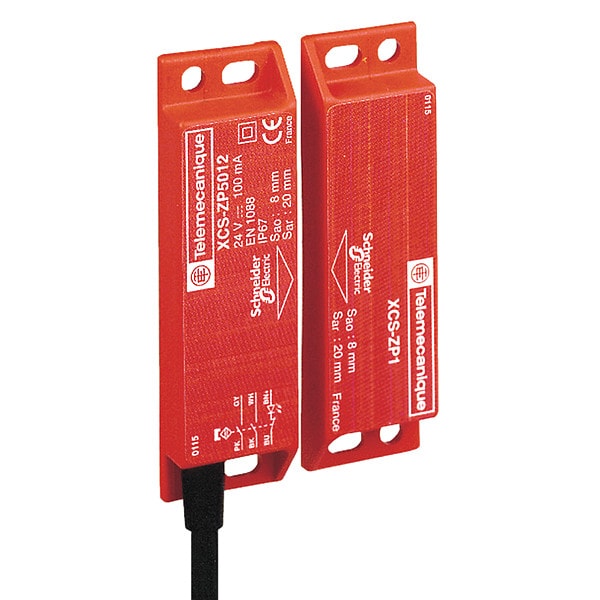

Safety Interlock 24Vdc 100A Txsc
| Item | Safety Interlock Switch |
|---|---|
| Series | XCSDMP |
| Height | 88 mm |
| Width | 25 mm |
| Depth | 13 mm |
| Electrical Connection | pre-cabled |
| Material | Plastic |
| Cable Length | 10 m |
| Standards | EN/ISO 12100 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || CSA C22.2 No 14 || ISO 14119 |
| Shock Resistance | 30 gn 11 ms IEC 60068-2-27 |
| Electrical Durability | 1200000 cycles |
| Vibration Resistance | 10 gn 10-150 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Contacts Type And Composition | 2 NC + 1 NO |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| [Ui] Rated Insulation Voltage | 100 V DC |
| Switching Frequency | 150 Hz |
| Product Certifications | CSA || UL |
| Resistance Across Terminals | 10 ohms |
| Approach Directions | 3 directions |
| Contacts Material | rhodium |
| Insulation Resistance | 1000 MOhm |
| Product Or Component Type | coded magnetic switch |
| Cable Material | PVC |
| Maximum Switching Voltage | 100 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-5-1 |
| [Ue] Rated Operational Voltage | 24 V DC |
| Contact Operation | 1 NC staggered |
| Switching Capacity In Ma | 0.1...100 mA |
| Number Of Poles | 3 |
| Ambient Air Temperature For Storage | -40-85°C |
| Maximum [Ie] Rated Operational Current | 100 mA |
| Size | 88 x 25 x 13 mm |
| Breaking Capacity | 10 VA |
| [Sar] Assured Tripping Distance | 20 mm |
| Short-Circuit Protection | 500 mA external cartridge fuse gG (gl) |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 |
| Cable Composition | 6 mm² x 0.25 mm² |
| Enclosure Material | thermoplastic PBT |
| [Sa] Assured Operating Distance | 8 mm |
| Maximum Sensitivity To Magnetic Fields | 0.3 mT |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Ambient Air Temperature For Operation | -25-85°C |
| Design | rectangular, standard |
| Component Name | XCSDMP |
| Package Quantity | 1 |
