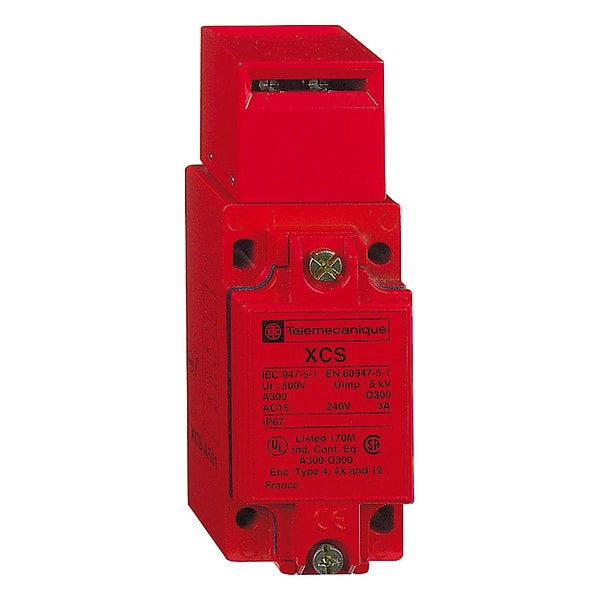

Interbloqueo de seguridad 300Vac 10A Txcs
| Item | Safety Interlock Switch |
|---|---|
| Height | 114-114 mm |
| Width | 40 mm |
| Depth | 44 mm |
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Material | Metal |
| Series | XCSA |
| Standards | EN/ISO 12100 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60204-1 || EN 1088/ISO 14119 |
| Head Material | Zamak |
| Body Material | zamak |
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Mechanical Durability | 1,000,000 cycle |
| Head Type | key operated turret head |
| Actuator Material | Metal |
| Component Name | XCSA |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Maximum Actuation Speed | 0.5 m/sec |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Cable Outer Diameter | 7 to 13 mm |
| Positive Opening | with NC contact |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
| Number Of Poles | 3 |
| Protective Treatment | TC |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Type And Composition | 2 NC + 1 NO |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Cable Entry | 1 entry tapped M20 x 1.5 |
| Local Signalling | without |
| Design | industrial |
| Product Certifications | CSA || UL |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| Minimum Actuation Speed | 0.01 m/sec |
| Minimum Actuator Force For Extraction | 20 N |
| Contact Operation | slow-break, break before make |
| Product Or Component Type | safety switch |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Package Quantity | 1 |
