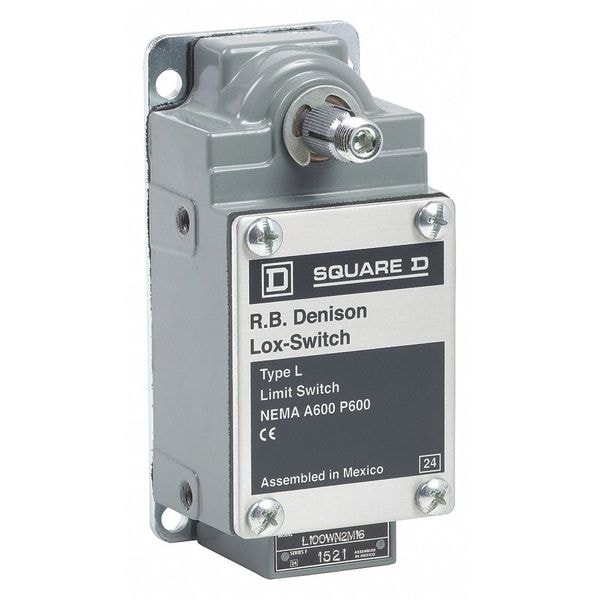

Interruptor de límite de servicio pesado, sin palanca, rotativo, 1NC/1NO, 10A @ 600V AC, Ubicación del actuador: Lateral.
| Item | Severe Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| Amps | 10 |
| Special Features | lateral approach |
| Contact Material | 90/10 AgCdO on copper backing stationary contact || silver on steel backing moveable contact |
| Operating Temp. Range | -10-185 °F |
| Width | 2-1/4 in |
| Body Style (Limit Switch) | fixed |
| Body Height - Limit Switch | 4.95 in |
| Standards | 2.5 kV AC for 1 minute CE || 2.2 kV AC for 1 minute UL || 2.64 kV AC for 1 minute CSA |
| Contact Form | Form YY |
| Body Depth - Limit Switch | 3.41 in |
| Body Material | cast aluminium |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12 |
| Series | L100 |
| IP Rating | IP67 conforming to IEC 60529 |
| NEMA Rating | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Contact Action | slow-break, break before make |
| Shock Resistance | 30 gn 9 ms IEC 60068-2-27 |
| Vibration Resistance | 10 gn 10-55 Hz)IEC 60068-2-6 |
| Actuation Type | from left or right || CW and CCW |
| Short Circuit Protection | 20 A Bussmann class CC KTK-R-20 non-time delay |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only |
| Head Type | rotary head |
| Weight | 1.5 lb |
| Operating Torque - Maximum | 5.94 in-lb |
| Pretravel | 7 Degrees |
| Total Travel | 70 Degrees |
| Includes Actuator | No Actuator Included |
| Type Of Operator | spring return without operating lever |
| Number Of Poles | 2 |
| Package Quantity | 1 |
