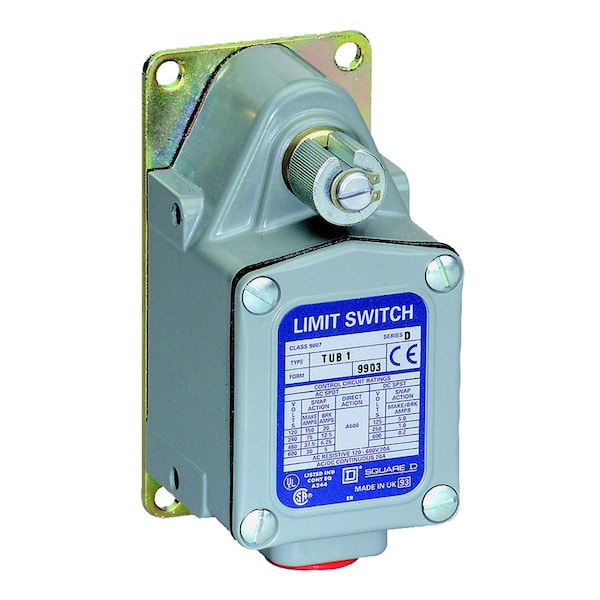

Interruptor de límite de servicio severo, sin palanca, rotativo, SPDT, 12A @ 600V CA, ubicación del actuador: lateral.
| Item | Severe Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 12 A @ 600 V |
| Series | 9007TU |
| Amps | 12 |
| Limit Switch Style | Severe Duty Limit Switch |
| Electrical Connection | screw clamp terminal AWG 22...AWG 12 |
| Certification | UL Listed || CSA || CE |
| Operating Temp. Range | -10-185 °F |
| Contact Material | silver flashed copper |
| Standards | 2200 V AC UL || 2500 V AC CE || 2640 V AC CSA |
| Body Material | cast zinc |
| NEMA Rating | NEMA 1/2/4/12/13 |
| IP Rating | IP65 || IP66 || IP67 |
| Contact Action | snap action |
| Actuation Type | CW, CCW |
| Shock Resistance | 30 gn |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 50 ft/min with 45° cam angle, levers only |
| Vibration Resistance | 10 gn 10-55 Hz) |
| Head Type | rotary head |
| Short Circuit Protection | 20 A Bussmann class CC KTK-R-20 non-time delay |
| Type Of Operator | spring return lever arm to be ordered separately || spring return |
| Package Quantity | 1 |
